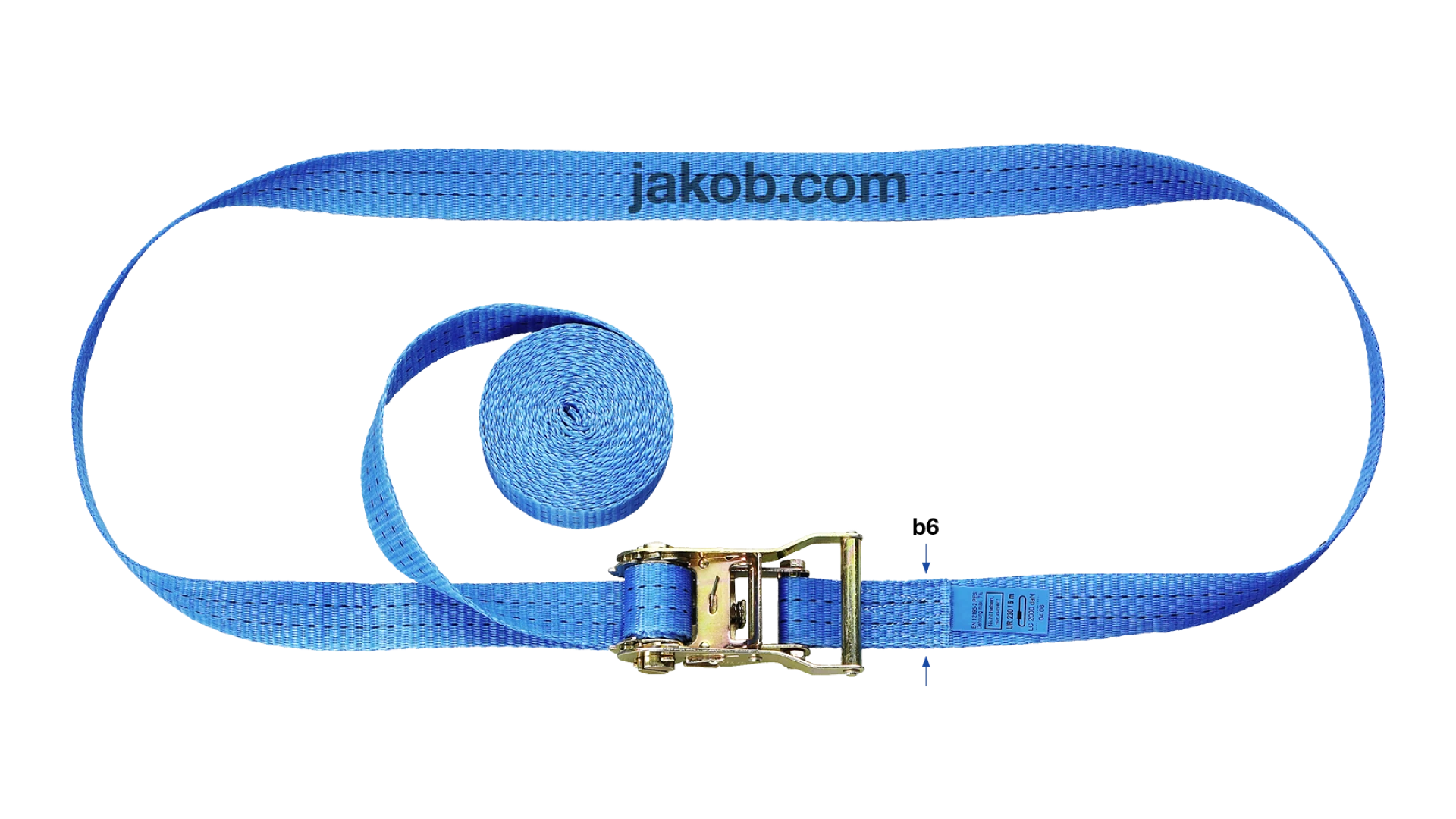

Hoop-casing assembly with ratchet
No. Color b6 Typ L WLL kN kg
70210-0070-040 #0086df 25 UR-070 4 8 0.2630
70210-0070-060 #0086df 25 UR-070 6 8 0.3070
70210-0070-080 #0086df 25 UR-070 8 8 0.3550
70210-0070-100 #0086df 25 UR-070 10 8 0.4000
70210-0150-040 #0086df 25 UR-150 4 15 0.5370
70210-0150-060 #0086df 25 UR-150 6 15 0.6360
70210-0150-080 #0086df 25 UR-150 8 15 0.7010
70210-0150-100 #0086df 25 UR-150 10 15 0.7650
70210-0220-040 #0086df 35 UR-220 4 20 0.6460
70210-0220-060 #0086df 35 UR-220 6 20 0.7140
70210-0220-080 #0086df 35 UR-220 8 20 0.9400
70210-0220-100 #0086df 35 UR-220 10 20 1.0760
70210-0320-040 #0086df 50 UR-320 4 20 0.9200
70210-0320-060 #0086df 50 UR-320 6 20 -
70210-0320-080 #0086df 50 UR-320 8 20 -
70210-0320-100 #0086df 50 UR-320 10 20 -
70210-0350-040 #0086df 50 UR-350 4 50 -
70210-0350-060 #0086df 50 UR-350 6 50 -
70210-0350-080 #0086df 50 UR-350 8 50 -
70210-0350-100 #0086df 50 UR-350 10 50 -

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
