Turnbuckle with two eyes Typ USA

제품 라인업 — Wire rope accessories · Connecting / tensioning

Turnbuckle with two eyes Typ USA

No.	b1 min	b1 max	b2	b3	b4	Inches	k	WLL kN	kg
30270-0350	243	340	138	24	11	5/16"	9	3.5	0.2000
Further informations Surface: hot-dip-galvanized Weight: 0.2000 kg Material group: steel Price basis / tiered prices Price on request
30270-0550	291	435	181	28	14	3/8"	10	5.4	0.3000
Further informations Surface: hot-dip-galvanized Weight: 0.3000 kg Material group: steel Price basis / tiered prices Price on request
30270-1000	408	610	267	37	18	1/2"	11	9.9	0.5000
Further informations Surface: hot-dip-galvanized Weight: 0.5000 kg Material group: steel Price basis / tiered prices Price on request
30270-1500	449	660	276	45	22	5/8"	14	15.8	1.3000
Further informations Surface: hot-dip-galvanized Weight: 1.3000 kg Material group: steel Price basis / tiered prices Price on request
30270-2300	492	680	286	53	25	3/4"	16	23.5	2.1000
Further informations Surface: hot-dip-galvanized Weight: 2.1000 kg Material group: steel Price basis / tiered prices Price on request
30270-3200	592	880	371	61	32	7/8"	19	32.6	3.3000
Further informations Surface: hot-dip-galvanized Weight: 3.3000 kg Material group: steel Price basis / tiered prices Price on request
30270-4500	660	900	381	76	37	1"	23	45.3	5.2000
Further informations Surface: hot-dip-galvanized Weight: 5.2000 kg Material group: steel Price basis / tiered prices Price on request
30270-6800	719	980	384	90	46	1 1/4"	29	68.9	8.6000
Further informations Surface: hot-dip-galvanized Weight: 8.6000 kg Material group: steel Price basis / tiered prices Price on request
30270-9600	775	1320	384	103	54	1 1/2"	32	97	14.1000
Further informations Surface: hot-dip-galvanized Weight: 14.1000 kg Material group: steel Price basis / tiered prices Price on request

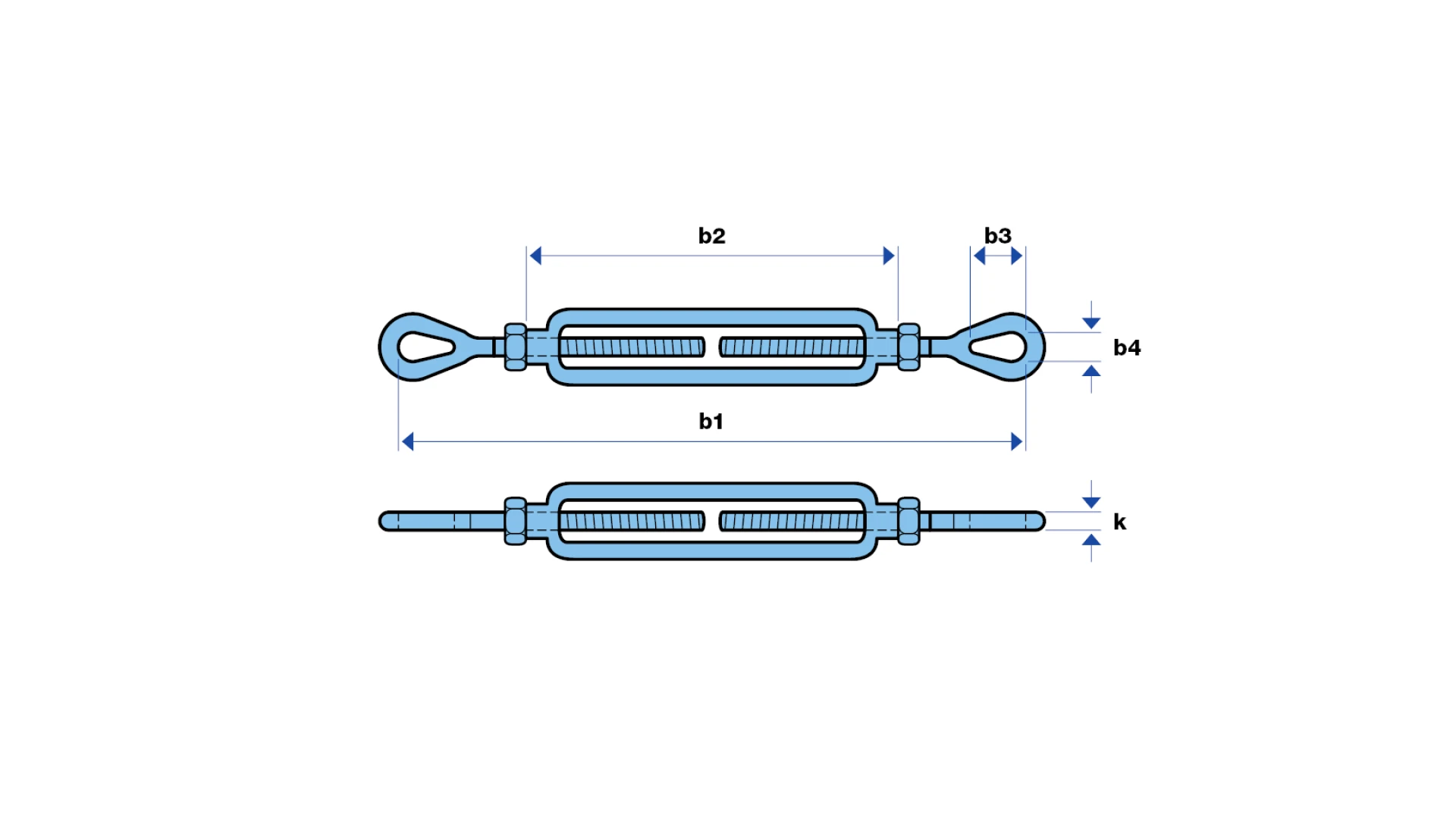

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
