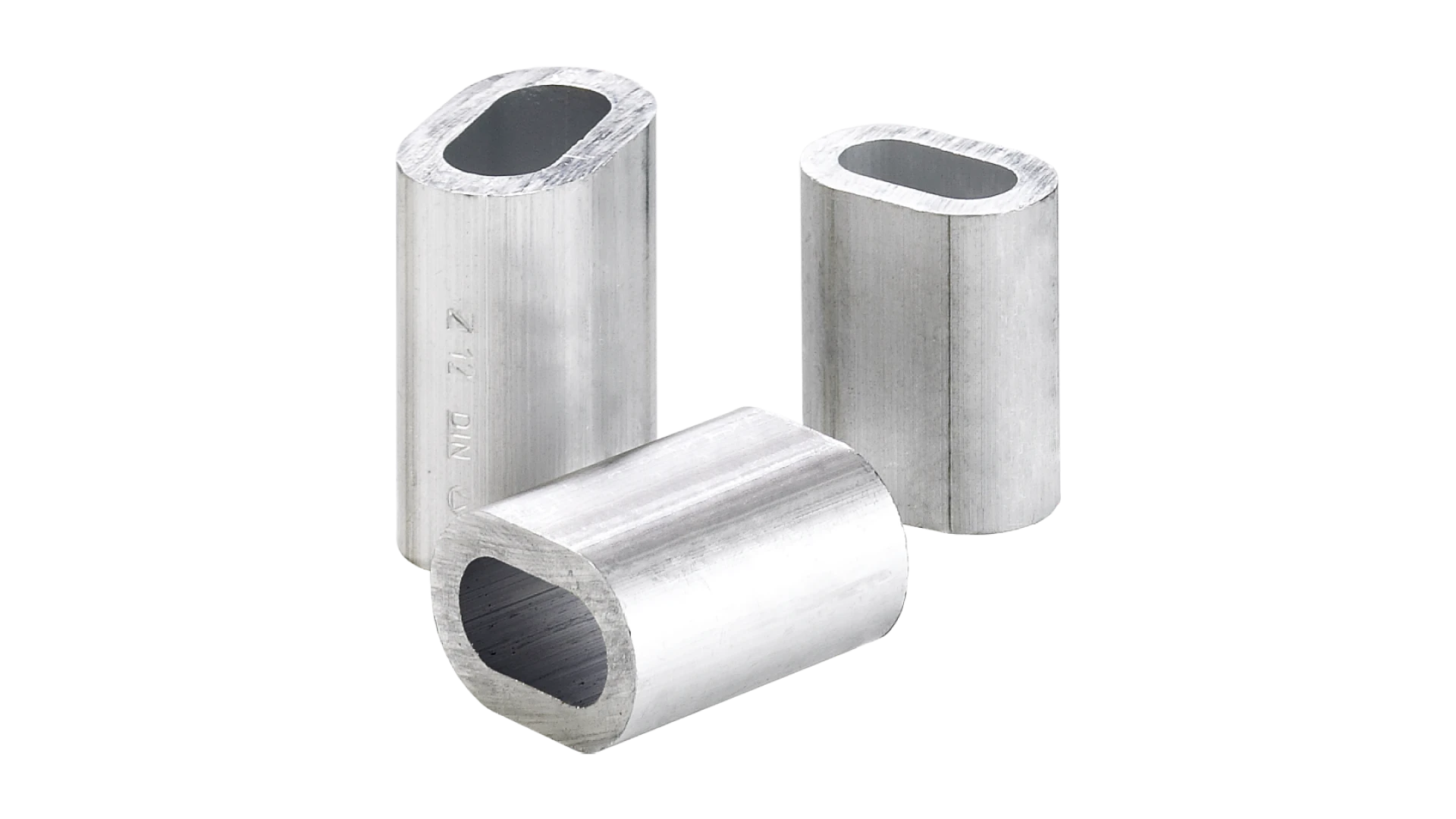

Crimping sleeves made of aluminium

제품 라인업 — Wire rope accessories · Crimping sleeves, thimbles

Crimping sleeves made of aluminium
No. ø kg
30580-0100 1 0.0001
30580-0150 1.5 0.0002
30580-0200 2 0.0003
30580-0250 2.5 0.0005
30580-0300 3 0.0009
30580-0350 3.5 0.0014
30580-0400 4 0.0018
30580-0450 4.5 0.0026
30580-0500 5 0.0036
30580-0600 6 0.0059
30580-0650 6.5 0.0080
30580-0700 7 0.0096
30580-0800 8 0.0140
30580-0900 9 0.0200
30580-1000 10 0.0270
30580-1100 11 0.0360
30580-1200 12 0.0460
30580-1300 13 0.0600
30580-1400 14 0.0740
30580-1600 16 0.1100
30580-1800 18 0.1600
30580-2000 20 0.2200
30580-2200 22 0.3000
30580-2400 24 0.3800
30580-2600 26 0.4800
30580-2800 28 0.6100
30580-3000 30 0.7200
30580-3200 32 0.9000
30580-3400 34 1.1400
30580-3600 36 1.2800
30580-3800 38 1.6300

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
