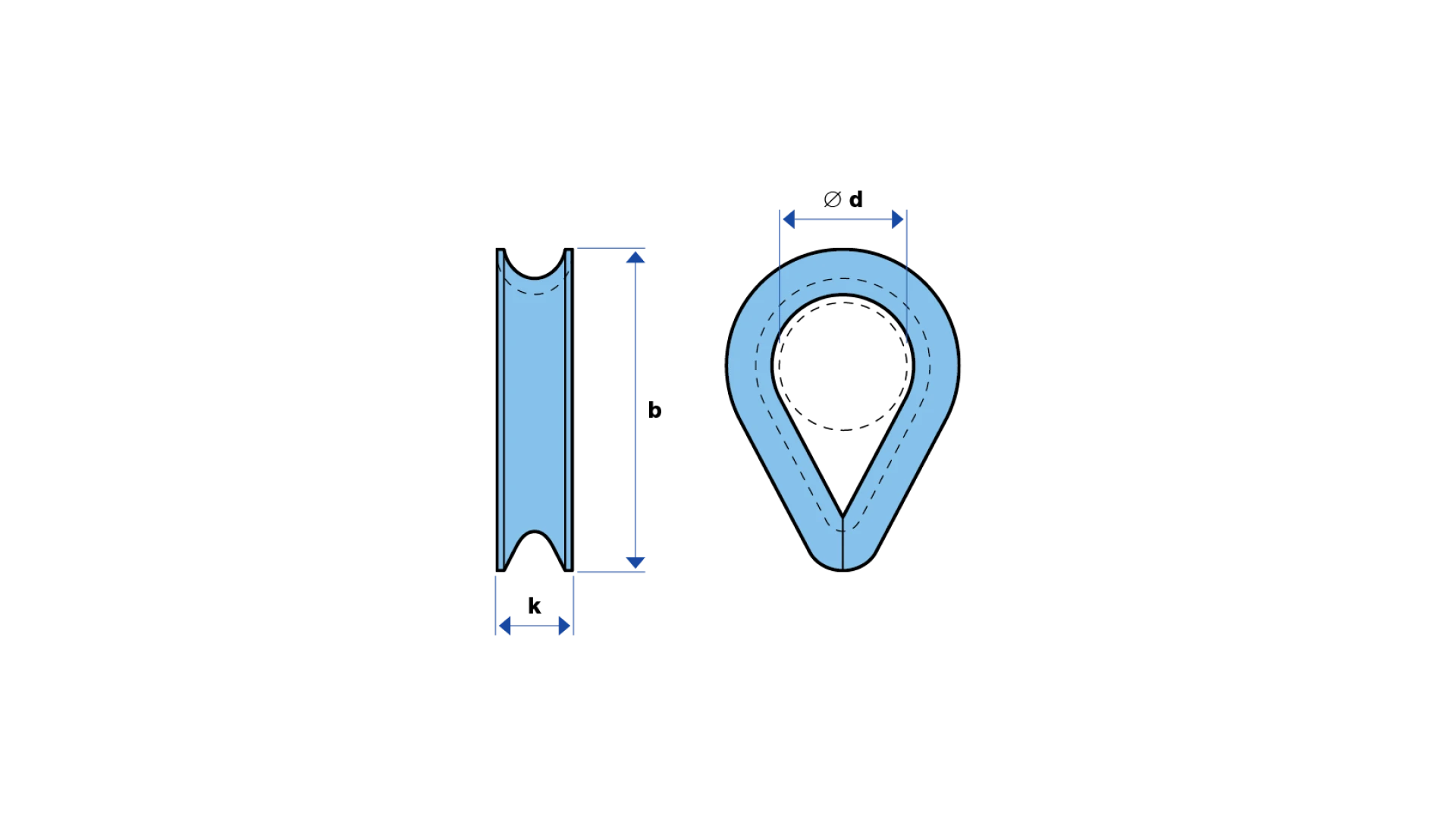

Thimble DIN 6899 type BF

제품 라인업 — Wire rope accessories · Crimping sleeves, thimbles

Thimble DIN 6899 type BF
No. ø b k ø d kg
30100-0300 3 28 5,5 12 0.0050
30100-0400 4 30 6,5 13 0.0080
30100-0500 5 34 7,5 15 0.0100
30100-0600 6 41 8,5 16 0.0160
30100-0700 7 43 10,0 18 0.0190
30100-0800 8 53 12,0 21 0.0300
30100-0810 8 80 12,0 35 0.0530
30100-1000 10 62 14,0 24 0.0470
30100-1010 10 86 14,0 40 0.0700
30100-1200 12 70 16,0 29 0.0680
30100-1210 12 98 16,0 45 0.1150
30100-1400 14 82 19,0 32 0.1000
30100-1410 14 110 19,0 50 0.1600
30100-1600 16 83 22,0 36 0.1450
30100-1610 16 130 22,0 60 0.2200
30100-1800 18 102 24,5 42 0.1900
30100-2000 20 102 27,0 42 0.2900
30100-2200 22 115 30,0 52 0.3200
30100-2400 24 132 33,0 60 0.5000
30100-2600 26 145 35,0 65 0.5900
30100-2800 28 165 37,0 70 0.8200
30100-3000 30 182 39,0 75 1.0000
30100-3200 32 185 41,0 80 1.3000
30100-3400 34 210 43,0 95 1.6000
30100-3600 36 220 45,0 100 1.7000
30100-3800 38 230 48,0 110 1.8000

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
