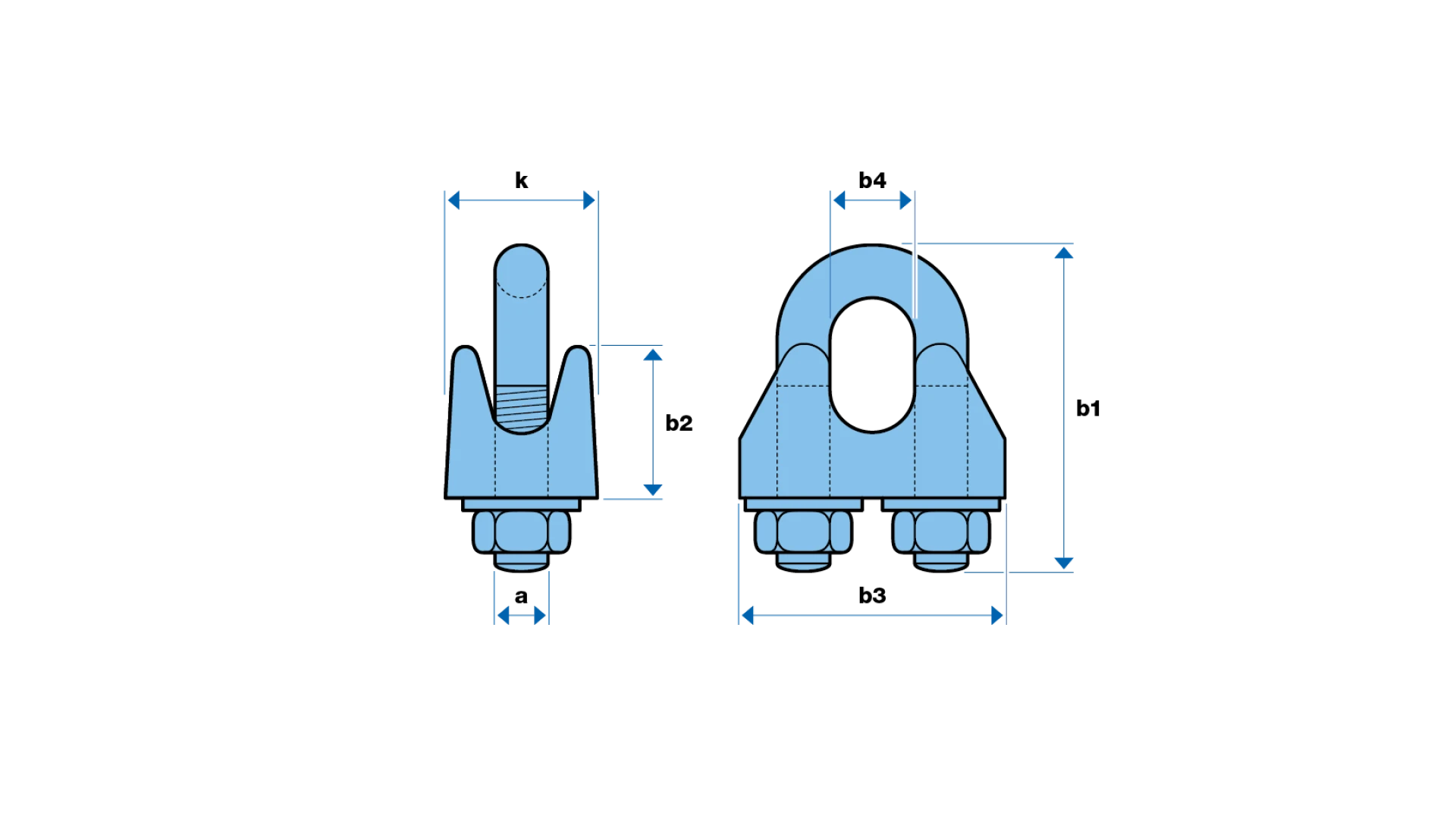

Wire rope clip EN 13411-5

제품 라인업 — Wire rope accessories · End connections detachable

Wire rope clip EN 13411-5
No. ø a b1 b2 b3 b4 k kg
30215-0500 5 M5 25 13 25 7 13 0.0210
30215-0650 6.5 M6 32 14 30 8 16 0.0400
30215-0800 8 M8 41 18 39 10 20 0.0820
30215-1000 10 M8 46 21 40 12 20 0.0920
30215-1200 12 M10 56 25 50 12.5 24 0.2400
30215-1400 14 M12 66 30 59 14 28 0.2800
30215-1600 16 M14 76 35 64 18 32 0.4300
30215-1900 19 M14 83 40 68 22 32 0.4900
30215-2200 22 M16 96 44 74 24 34 0.6800
30215-2600 26 M20 118 51 84 26 38 1.1700
30215-3000 30 M20 131 59 95 34 41 1.4000
30215-3400 34 M22 150 67 105 38 45 2.1300
30215-4000 40 M24 167 77 117 44 49 2.6800

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
