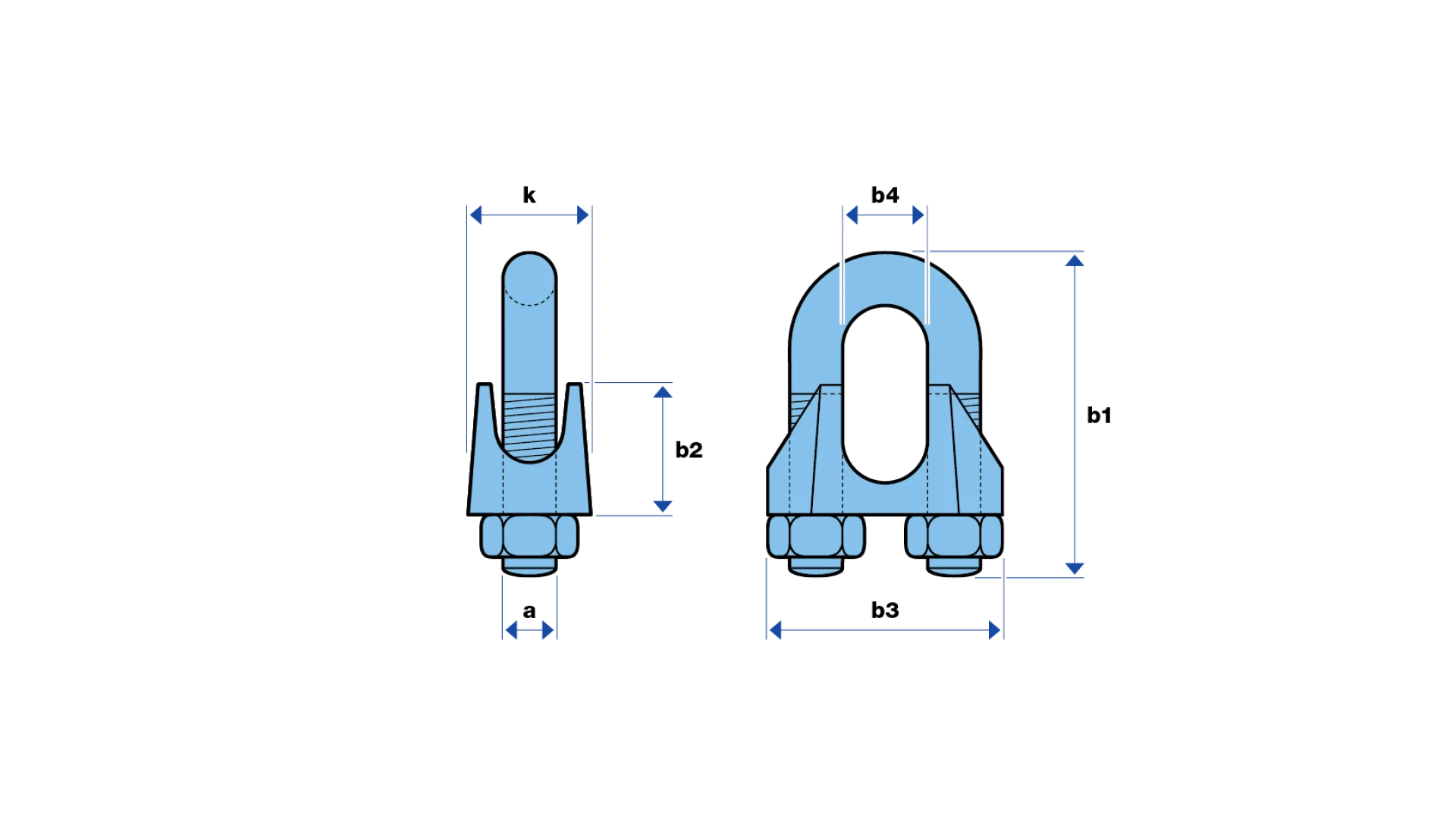

Wire rope clip früher DIN 741

제품 라인업 — Wire rope accessories · End connections detachable

Wire rope clip früher DIN 741
No. ø a b1 b2 b3 b4 k kg
30200-0300 3 M4 20 10 21 4 10 0.0070
30200-0500 5 M5 24 10 23 6 11 0.0150
30200-0650 6.5 M5 28 11 26 8 12 0.0190
30200-0800 8 M6 34 15 30 9 14 0.0320
30200-1000 10 M8 42 17 34 11 18 0.0660
30200-1100 11 M8 44 18 36 12 19 0.0710
30200-1300 13 M10 55 21 42 14 23 0.1250
30200-1400 14 M10 57 22 44 15 23 0.1400
30200-1600 16 M12 63 26 50 17 26 0.2050
30200-1900 19 M12 75 30 54 20 29 0.3080
30200-2200 22 M14 85 34 61 23 33 0.3570
30200-2600 26 M14 95 37 65 27 35 0.5690
30200-3000 30 M16 110 43 74 32 37 0.6180
30200-3400 34 M16 120 50 80 36 42 0.8680
30200-4000 40 M16 140 55 88 42 45 1.0900

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
