Safety hook with swivel

제품 라인업 — Wire rope accessories · Lifting accessories

Safety hook with swivel

No.	b1	b2	g	NG	ø d1	ø d2	WLL kN	kg
30425-0100	180	144	30	6	25	11	10	-
Further informations Surface: painted Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
30425-0200	230	190	35	7-8	33	17	20	1.1000
Further informations Surface: painted Material group: steel Nominal strength (Mat. strength): class 8 Weight: 1.1000 kg Price basis / tiered prices Price on request
30425-0320	285	235	45	10	40	19	31.5	2.0000
Further informations Surface: painted Material group: steel Nominal strength (Mat. strength): class 8 Weight: 2.0000 kg Price basis / tiered prices Price on request
30425-0500	365	295	60	13	49	23	53	4.0000
Further informations Surface: painted Material group: steel Nominal strength (Mat. strength): class 8 Weight: 4.0000 kg Price basis / tiered prices Price on request

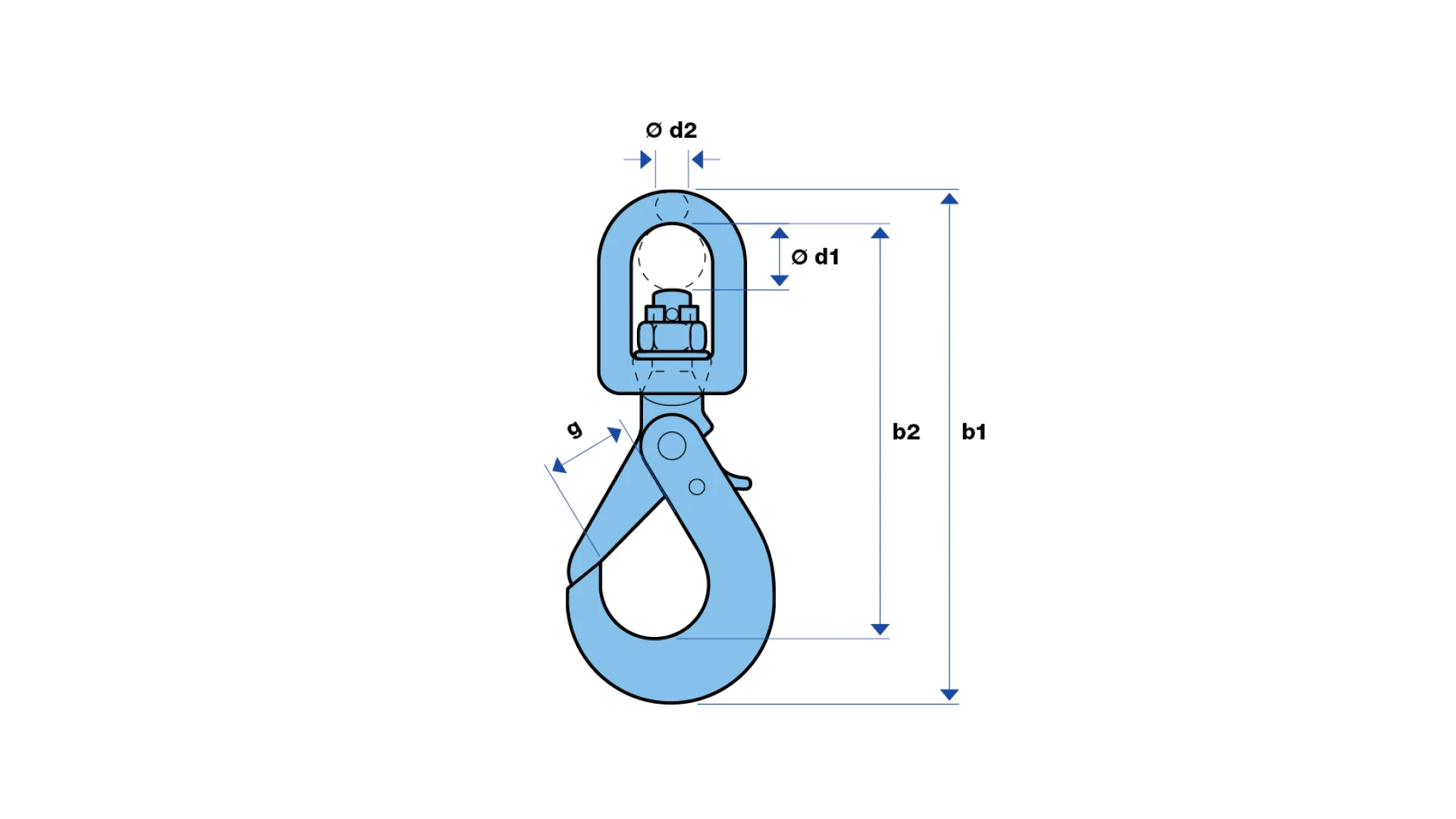

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
