Lifting point with long screw

제품 라인업 — Wire rope accessories · Miscellaneous

Lifting point with long screw

No.	b1	b2	b4	b5	c	NG	ø d	WLL kN	kg
80363-0030	75	40	35	30	76	M8	10	3	0.2000
Further informations Surface: painted Weight: 0.2000 kg Material group: steel Price basis / tiered prices Price on request
80363-0063	75	39	35	30	96	M10	10	6.3	0.4000
Further informations Surface: painted Weight: 0.4000 kg Material group: steel Price basis / tiered prices Price on request
80363-0100	84	40	37	33	114	M12	14	10	0.5000
Further informations Surface: painted Weight: 0.5000 kg Material group: steel Price basis / tiered prices Price on request
80363-0150	84	38	37	33	149	M16	14	15	0.7000
Further informations Surface: painted Weight: 0.7000 kg Material group: steel Price basis / tiered prices Price on request
80363-0250	123	66	54	50	186	M20	17	25	1.7000
Further informations Surface: painted Weight: 1.7000 kg Material group: steel Price basis / tiered prices Price on request
80363-0400	123	64	54	50	221	M24	17	40	2.0000
Further informations Surface: painted Weight: 2.0000 kg Material group: steel Price basis / tiered prices Price on request
80363-0500	147	66	65	60	278	M30	23	50	4.4000
Further informations Surface: painted Weight: 4.4000 kg Material group: steel Price basis / tiered prices Price on request

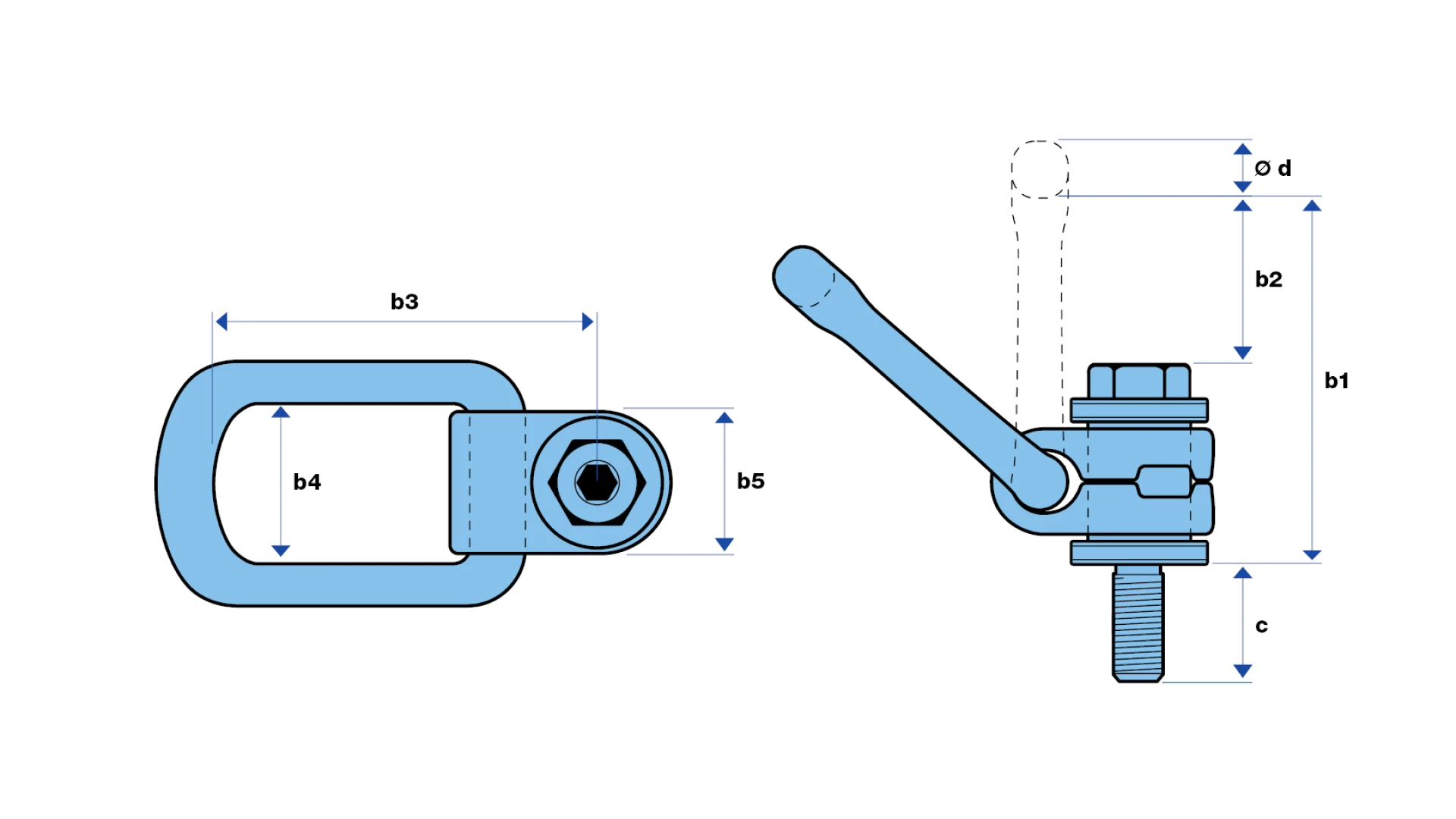

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
