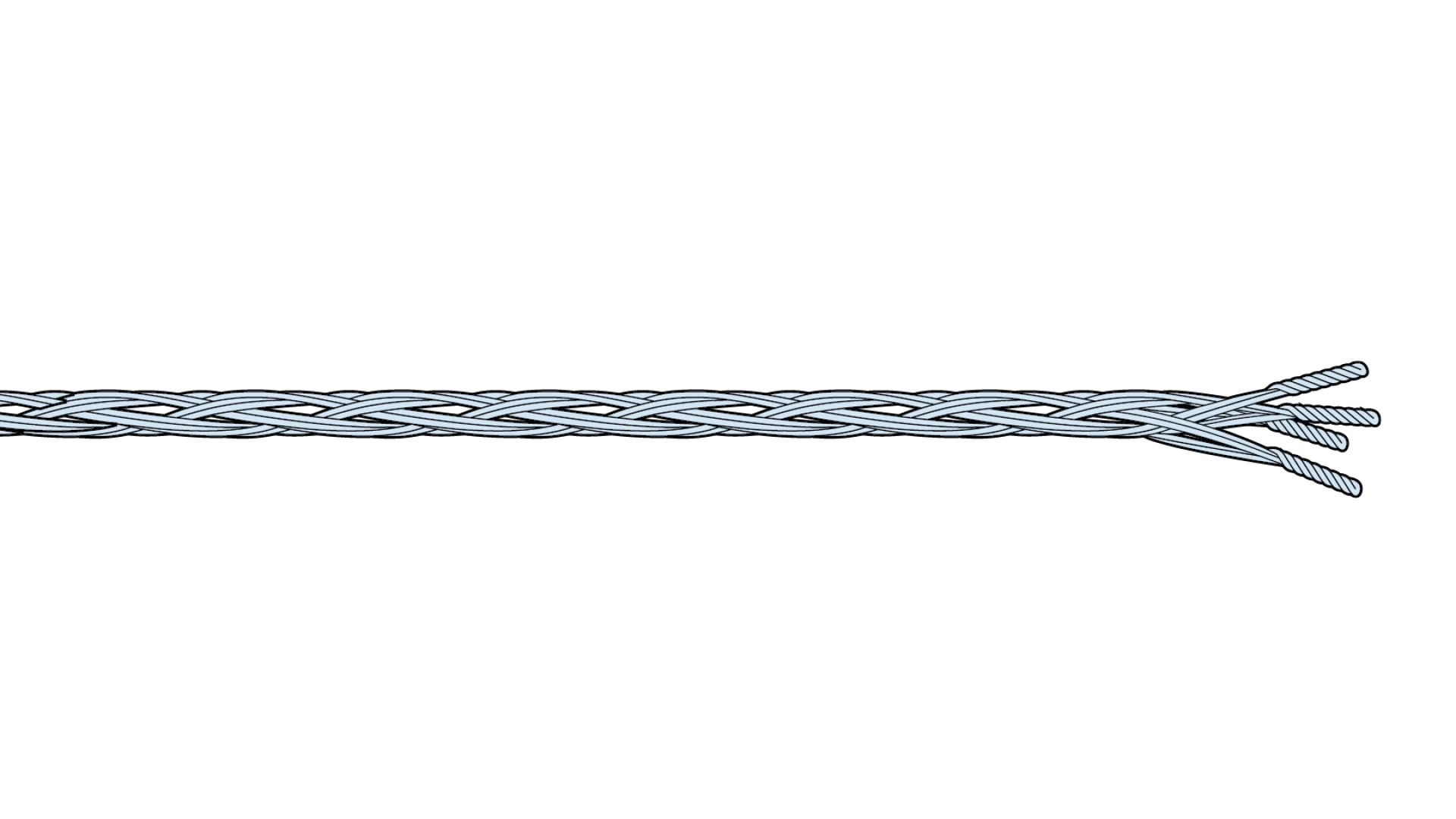

Pulling stocking type KO

제품 라인업 — Wire rope accessories · Miscellaneous

Pulling stocking type KO

No.	ø	lg	WLL kN	kg
30735-0815-00	08-15	1500	6.2	0.2000
Further informations Surface: galvanized Diameter: 08-15 mm Weight: 0.2000 kg Material group: steel Price basis / tiered prices Price on request
30735-1520-00	15-20	1500	12.8	0.5000
Further informations Surface: galvanized Diameter: 15-20 mm Weight: 0.5000 kg Material group: steel Price basis / tiered prices Price on request
30735-2030-00	20-30	1500	16	0.7000
Further informations Surface: galvanized Diameter: 20-30 mm Weight: 0.7000 kg Material group: steel Price basis / tiered prices Price on request
30735-3040-00	30-40	1500	19.2	0.9000
Further informations Surface: galvanized Diameter: 30-40 mm Weight: 0.9000 kg Material group: steel Price basis / tiered prices Price on request
30735-4050-00	40-50	1500	22.4	1.3000
Further informations Surface: galvanized Diameter: 40-50 mm Weight: 1.3000 kg Material group: steel Price basis / tiered prices Price on request
30735-5060-00	50-60	1500	37.4	1.8000
Further informations Surface: galvanized Diameter: 50-60 mm Weight: 1.8000 kg Material group: steel Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
