External thread end right-hand swaged promat galvanized

제품 라인업 — Wire rope accessories · Non detachable end connections

External thread end right-hand swaged promat galvanized
No. ø a b c ø d kg
30650-0700-075 7 M16 155 75 13 0.2290
30650-0800-075 8 M18 155 75 16 0.2290
30650-0800-080 8 M12 157 80 13 0.2290
30650-0800-100 8 M16 181.5 100 13 0.2090
30650-0850-075 8.5 M18 155 75 16 0.2370
30650-0900-080 9 M18 161 80 16 0.2320
30650-1000-109 10 M16 215 109 18 0.3030
30650-1000-174 10 M16 280 174 18 0.4060
30650-1200-151 12 M16 260 151 20 0.4000

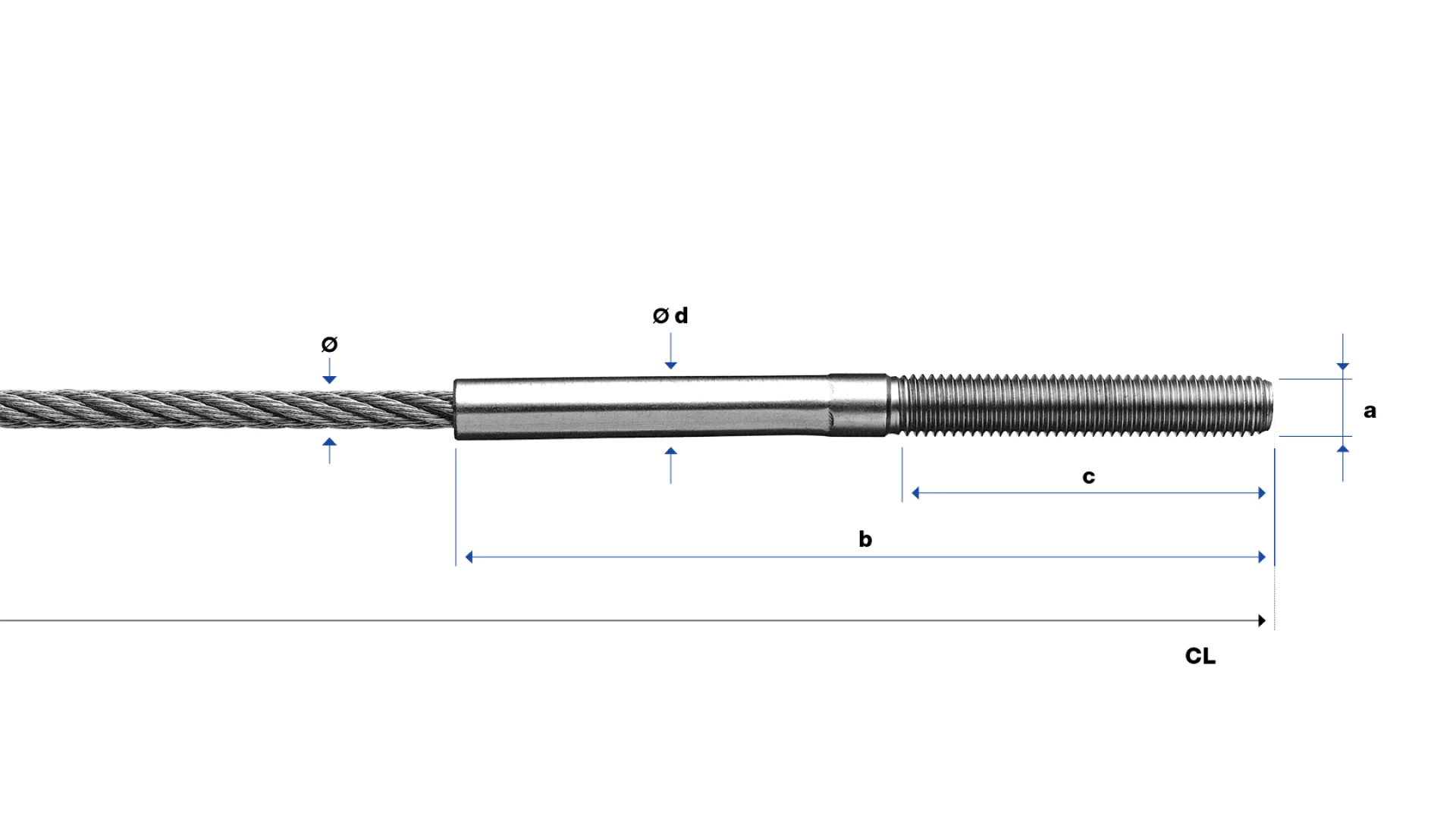

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
