Socket with jaw and bolt swaged
No. ø b1 b2 e f g h ø d1 ø d2 kg
30510-0600 6 122 54 20 40 18 35 13 18 0.2400
30510-0800 8 158 81 22 45 21 41 20 21 0.5100
30510-0910 9-10 158 81 25 45 21 41 20 21 0.5700
30510-1112 11-12 198 108 30 50 25 51 25 25 0.9400
30510-1300 13 198 108 30 53 25 51 25 25 0.9400
30510-1400 14 241 135 35 58 32 60 32 30 2.0300
30510-1600 16 241 135 40 58 32 60 32 30 2.1500
30510-1820 18-20 293 162 45 70 28 70 39 35 3.6200

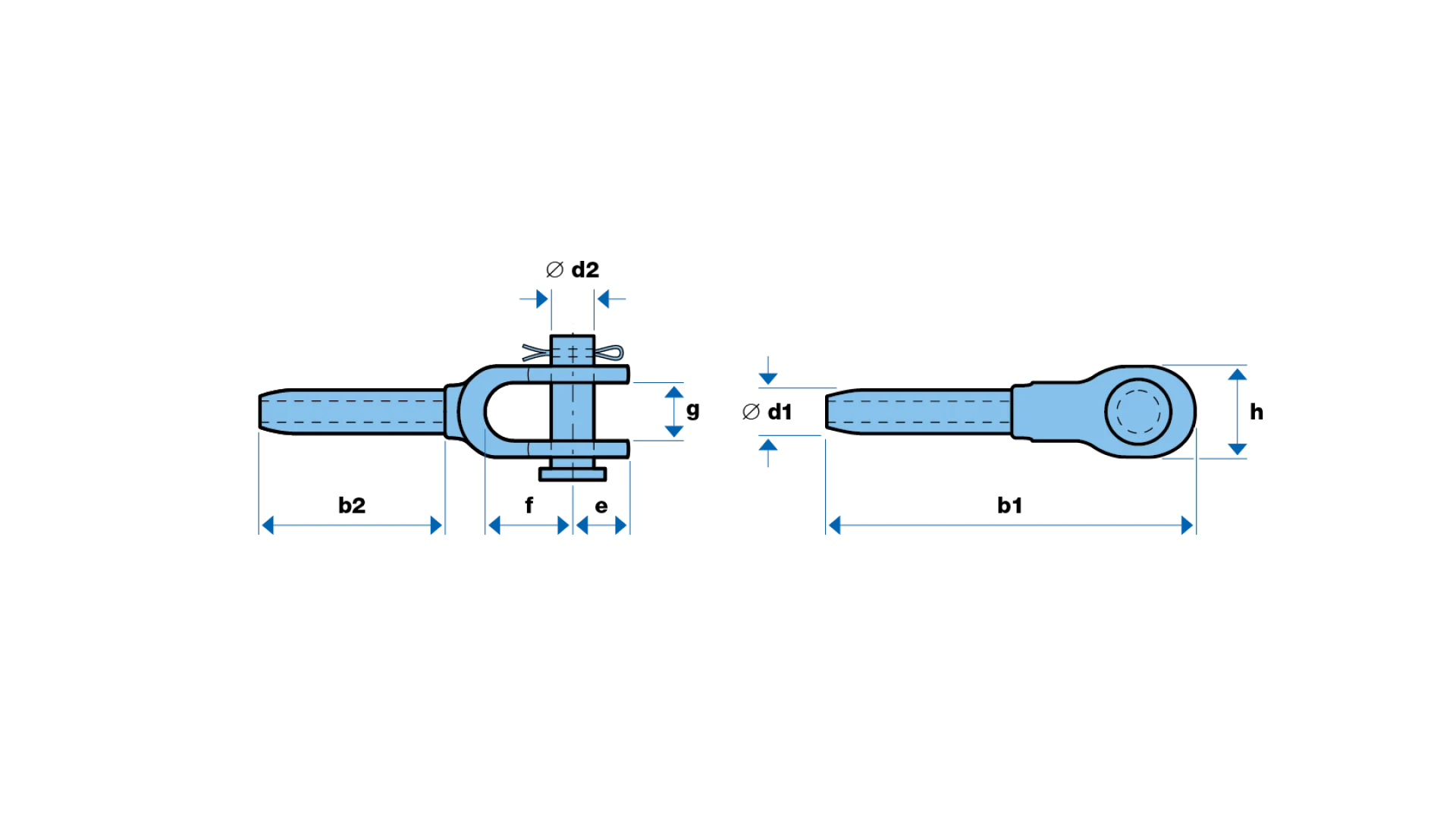

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
