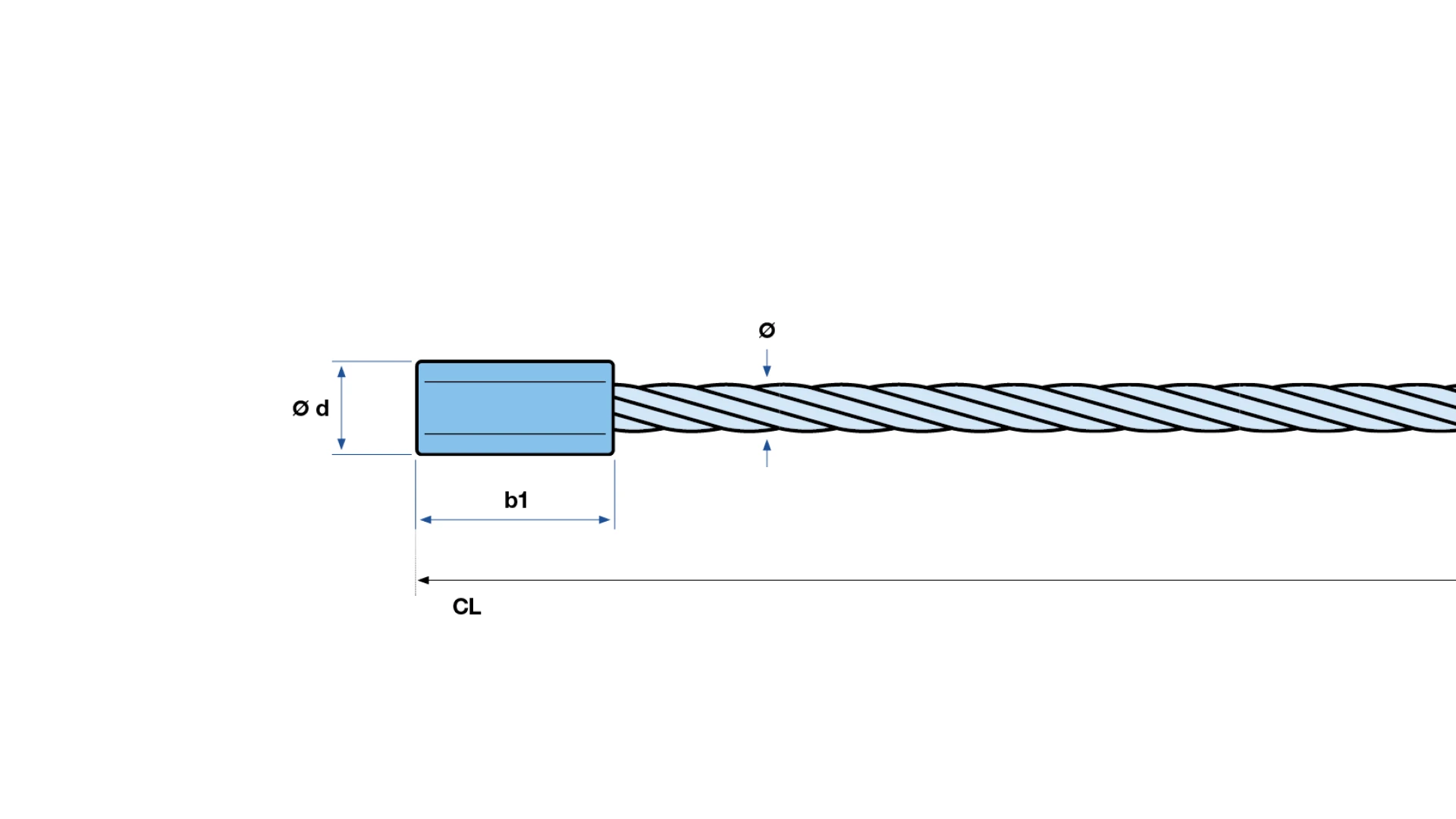

Steel end stop round swaged

제품 라인업 — Wire rope accessories · Non detachable end connections

Steel end stop round swaged
No. ø b1 ø d kg
30565-0500-10 5 25 10 0.0140
30565-0600-10 6 25 10 0.0140
30565-0600-12 6 31 12 0.0240
30565-0700-12 7 31 12 0.0240
30565-0700-13 7 32 13 0.0210
30565-0800-13 8 32 13 0.0210
30565-0800-16 8 44 16 0.0550
30565-0800-18 8 43 18 0.0710
30565-0800-20 8 42 20 0.0990
30565-0900-18 9 43 18 0.0710
30565-0900-20 9 42 20 0.0990
30565-1000-18 10 43 18 0.0710
30565-1000-20 10 42 20 0.0990
30565-1000-22 10 44 22 0.1120
30565-1000-25 10 44 25 0.1460
30565-1000-27 10 65 27 0.2170
30565-1100-20 11 42 20 0.0990
30565-1100-25 11 45 25 0.1460
30565-1200-22 12 45 22 0.1120
30565-1200-25 12 45 25 0.1460
30565-1300-25 13 45 25 0.1460
30565-1316 13-16 66 32 0.3210
30565-1700 7-16 110 28 0.3700
30565-1800 17-20 110 40 0.8370

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
