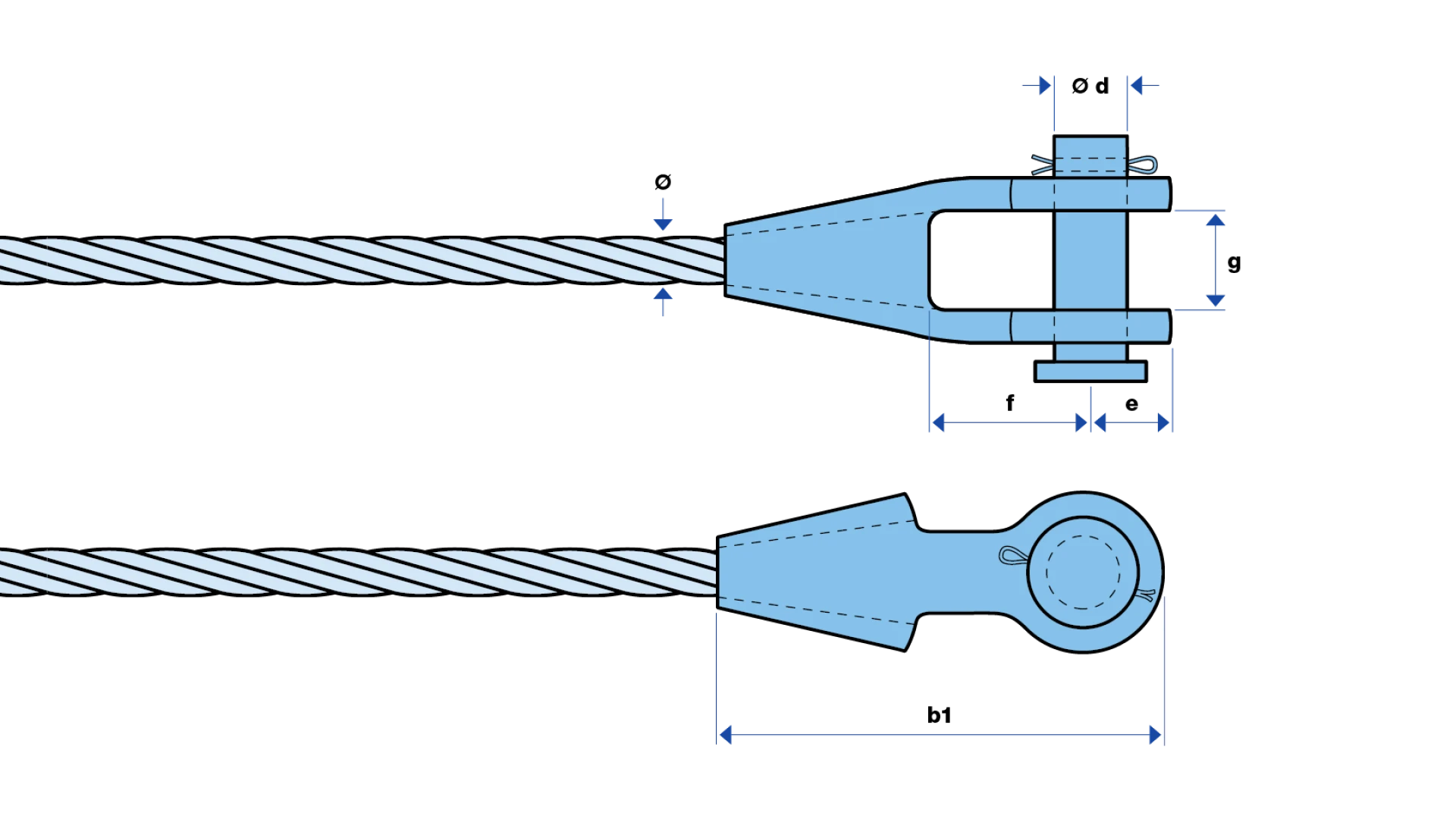

Spelter socket with clevis and pin poured with metal

제품 라인업 — Wire ropes assemblies · Casted socket

Spelter socket with clevis and pin poured with metal
No. ø b1 e f g ø d kg
30530-0607-01 6-7 116 20 40 17 18 0.6000
30530-0810-01 8-10 124 20 45 20 21 0.7400
30530-1113-01 11-13 142 27 51 25 26 1.2200
30530-1416-01 14-16 171 32 63 32 31 2.2100
30530-1800-01 18 205 40 76 38 36 3.2400
30530-2022-01 20-22 235 45 89 44 42 5.3700
30530-2426-01 24-26 275 60 101 51 52 8.4300
30530-2830-01 28-30 298 63 114 57 57 11.6500
30530-3235-01 32-35 333 70 127 64 64 16.7000
30530-3800-01 38 384 75 152 76 70 25.0000
30530-4042-01 40-42 413 80 165 76 76 28.6000

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
