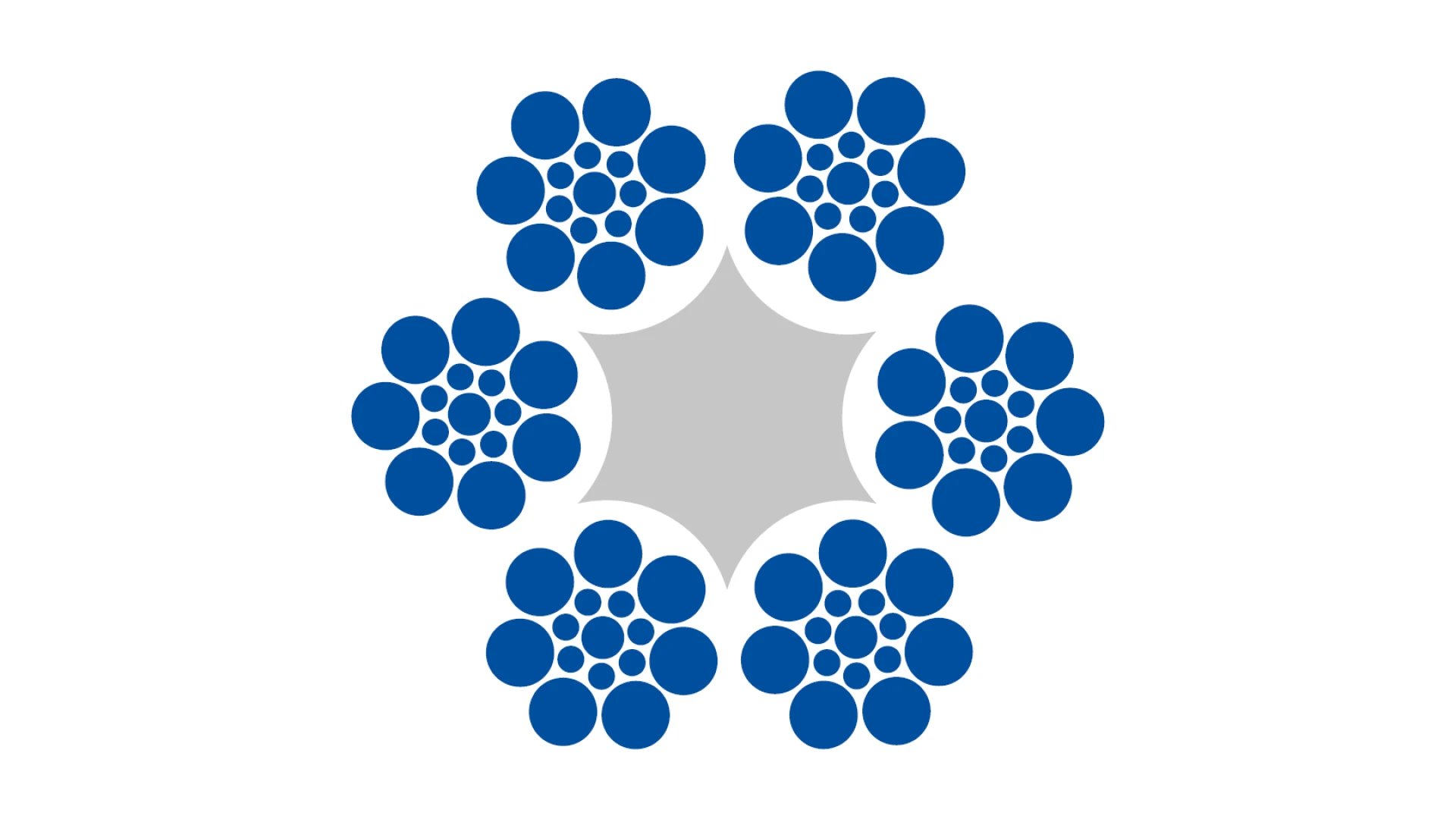

Hauling- and carrying rope 6 x 15 Seale + FC

제품 라인업 — Wire ropes · Cableway ropes

Hauling- and carrying rope 6 x 15 Seale + FC

No.	ø	Constr	MBL kN	kg
10328-1400-01	14	6 x 15 Seale + FC	120	0.6400
Further informations Surface: galvanized Construction: 6 x 15 Seale + FC Diameter: 14 mm Weight: 0.6400 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm2 Lay direction: zZ Price basis / tiered prices Price on request
10328-1500-01	15	6 x 15 Seale + FC	147	0.7800
Further informations Surface: galvanized Construction: 6 x 15 Seale + FC Diameter: 15 mm Weight: 0.7800 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm2 Lay direction: zZ Price basis / tiered prices Price on request
10328-1600-01	16	6 x 15 Seale + FC	159	0.8500
Further informations Surface: galvanized Construction: 6 x 15 Seale + FC Diameter: 16 mm Weight: 0.8500 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm2 Lay direction: zZ Price basis / tiered prices Price on request
10328-1800-01	18	6 x 15 Seale + FC	202	1.1300
Further informations Surface: galvanized Construction: 6 x 15 Seale + FC Diameter: 18 mm Weight: 1.1300 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm2 Lay direction: zZ Price basis / tiered prices Price on request
10328-2000-01	20	6 x 15 Seale + FC	253	1.3600
Further informations Surface: galvanized Construction: 6 x 15 Seale + FC Diameter: 20 mm Weight: 1.3600 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm2 Lay direction: zZ Price basis / tiered prices Price on request
10328-2200-01	22	6 x 15 Seale + FC	310	1.6600
Further informations Surface: galvanized Construction: 6 x 15 Seale + FC Diameter: 22 mm Weight: 1.6600 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm2 Lay direction: zZ Price basis / tiered prices Price on request
10328-2400-01	24	6 x 15 Seale + FC	353	1.9000
Further informations Surface: galvanized Construction: 6 x 15 Seale + FC Diameter: 24 mm Weight: 1.9000 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm2 Lay direction: zZ Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
