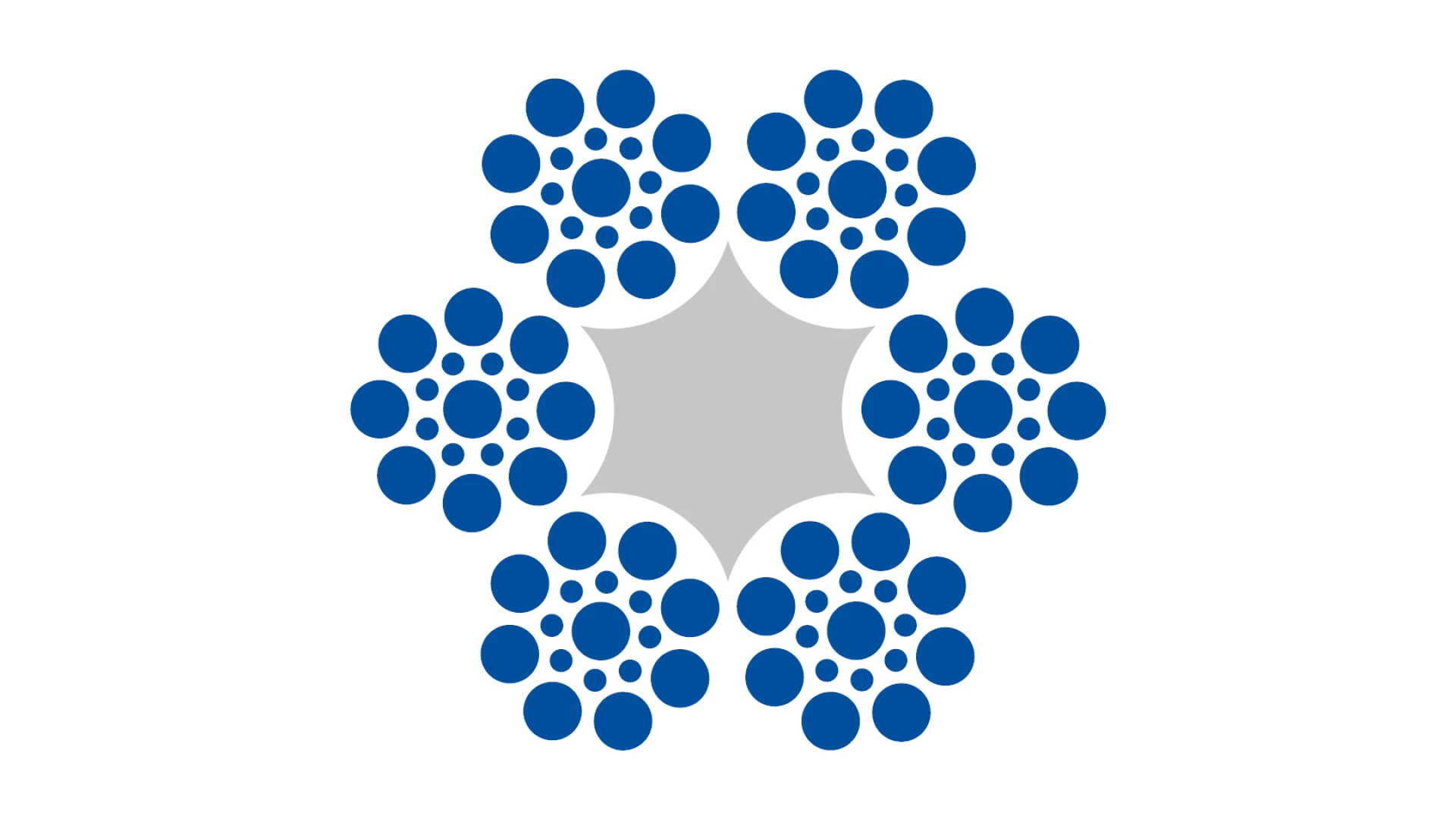

Hauling- and carrying rope 6 x 17 Seale + FC

제품 라인업 — Wire ropes · Cableway ropes

Hauling- and carrying rope 6 x 17 Seale + FC

No.	ø	Constr	MBL kN	kg
10326-1350-01	13.5	6 x 17 Seale + FC	116	0.6300
Further informations Surface: galvanized Construction: 6 x 17 Seale + FC Diameter: 13.5 mm Weight: 0.6300 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm² Lay direction: zZ Price basis / tiered prices Price on request
10326-1400-01	14	6 x 17 Seale + FC	126	0.6800
Further informations Surface: galvanized Construction: 6 x 17 Seale + FC Diameter: 14 mm Weight: 0.6800 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm² Lay direction: zZ Price basis / tiered prices Price on request
10326-1600-01	16	6 x 17 Seale + FC	158	0.8500
Further informations Surface: galvanized Construction: 6 x 17 Seale + FC Diameter: 16 mm Weight: 0.8500 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm² Lay direction: zZ Price basis / tiered prices Price on request
10326-1800-01	18	6 x 17 Seale + FC	207	1.1100
Further informations Surface: galvanized Construction: 6 x 17 Seale + FC Diameter: 18 mm Weight: 1.1100 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm² Lay direction: zZ Price basis / tiered prices Price on request
10326-1900-01	19	6 x 17 Seale + FC	234	1.2500
Further informations Surface: galvanized Construction: 6 x 17 Seale + FC Diameter: 19 mm Weight: 1.2500 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm² Lay direction: zZ Price basis / tiered prices Price on request
10326-2000-01	20	6 x 17 Seale + FC	260	1.4000
Further informations Surface: galvanized Construction: 6 x 17 Seale + FC Diameter: 20 mm Weight: 1.4000 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm² Lay direction: zZ Price basis / tiered prices Price on request
10326-2200-01	22	6 x 17 Seale + FC	315	1.6600
Further informations Surface: galvanized Construction: 6 x 17 Seale + FC Diameter: 22 mm Weight: 1.6600 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm² Lay direction: zZ Price basis / tiered prices Price on request
10326-2400-01	24	6 x 17 Seale + FC	377	2.0300
Further informations Surface: galvanized Construction: 6 x 17 Seale + FC Diameter: 24 mm Weight: 2.0300 kg Material group: steel wire Lay direction: zZ Standard and Classification: 1860 N/mm² Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
