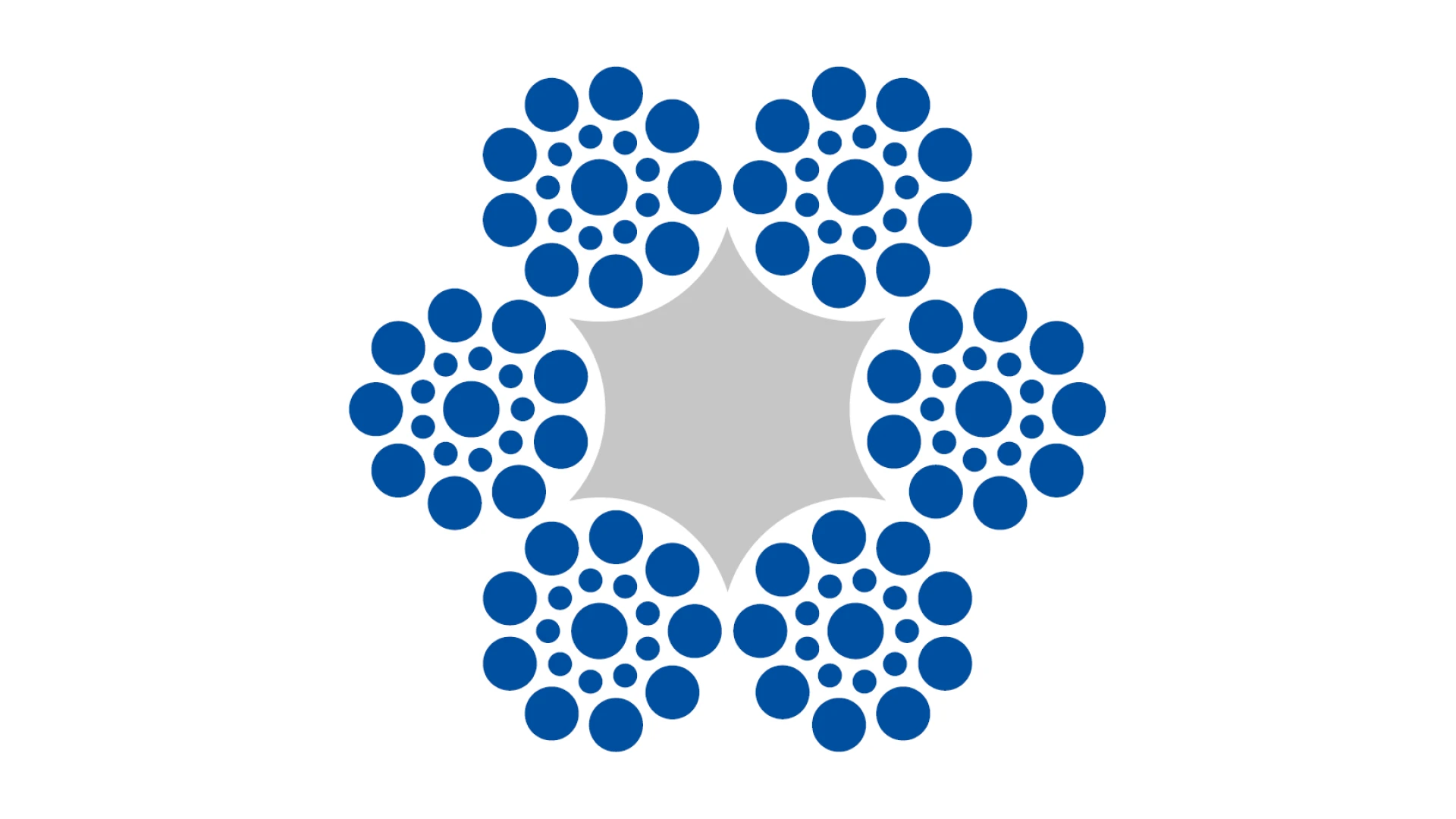

Hauling- and carrying rope 6 x 19 Seale + FC

제품 라인업 — Wire ropes · Cableway ropes

Hauling- and carrying rope 6 x 19 Seale + FC

No.	ø	Constr	MBL kN	kg
10327-1600-01	16	6 x 19 Seale + FC	162	0.8700
Further informations Construction: 6 x 19 Seale + FC Diameter: 16 mm Weight: 0.8700 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm2 Lay direction: zZ Price basis / tiered prices Price on request
10327-1800-01	18	6 x 19 Seale + FC	216	1.1600
Further informations Construction: 6 x 19 Seale + FC Diameter: 18 mm Weight: 1.1600 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm2 Lay direction: zZ Price basis / tiered prices Price on request
10327-2000-01	20	6 x 19 Seale + FC	262	1.4000
Further informations Construction: 6 x 19 Seale + FC Diameter: 20 mm Weight: 1.4000 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm2 Lay direction: zZ Price basis / tiered prices Price on request
10327-2200-01	22	6 x 19 Seale + FC	316	1.6800
Further informations Construction: 6 x 19 Seale + FC Diameter: 22 mm Weight: 1.6800 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm2 Lay direction: zZ Price basis / tiered prices Price on request
10327-2400-01	24	6 x 19 Seale + FC	376	2.0000
Further informations Construction: 6 x 19 Seale + FC Diameter: 24 mm Weight: 2.0000 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm2 Lay direction: zZ Price basis / tiered prices Price on request
10327-2600-01	26	6 x 19 Seale + FC	431	2.3200
Further informations Construction: 6 x 19 Seale + FC Diameter: 26 mm Weight: 2.3200 kg Material group: steel wire Nominal strength (Mat. strength): 1860 N/mm2 Lay direction: zZ Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
