Tension rope

제품 라인업 — Wire ropes · Cableway ropes

Tension rope

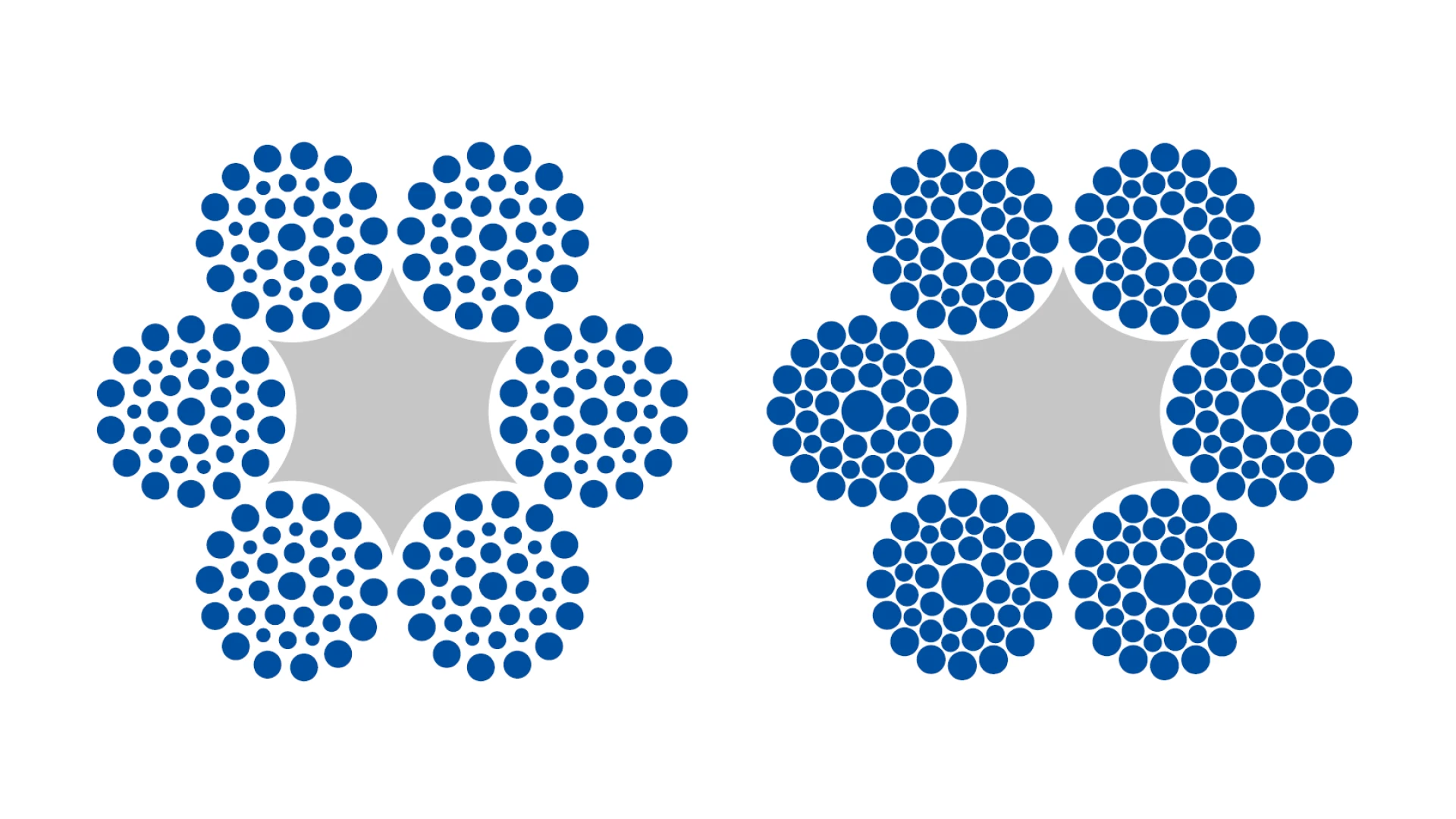

No.	ø	Constr	MBL kN	kg
10251-1200-99	12	6 x 36 + FC	91	0.5280
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 36 + FC Diameter: 12 mm Weight: 0.5280 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10251-1300-99	13	6 x 36 + FC	109.3	0.6300
Further informations Standard and Classification: EN12385 Surface: galvanized Construction: 6 x 36 + FC Diameter: 13 mm Weight: 0.6300 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10251-1400-99	14	6 x 36 + FC	122	0.7400
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 36 + FC Diameter: 14 mm Weight: 0.7400 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10251-1500-99	15	6 x 36 + FC	145	0.8500
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 36 + FC Diameter: 15 mm Weight: 0.8500 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10252-1600-99	16	6 x 41 + FC	171	0.9700
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 41 + FC Diameter: 16 mm Weight: 0.9700 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10252-1800-99	18	6 x 41 + FC	218	1.2300
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 41 + FC Diameter: 18 mm Weight: 1.2300 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10252-2000-99	20	6 x 41 + FC	274	1.5200
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 41 + FC Diameter: 20 mm Weight: 1.5200 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10252-2200-99	22	6 x 41 + FC	335	1.8400
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 41 + FC Diameter: 22 mm Weight: 1.8400 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10252-2400-99	24	6 x 41 + FC	390	2.1900
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 41 + FC Diameter: 24 mm Weight: 2.1900 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
