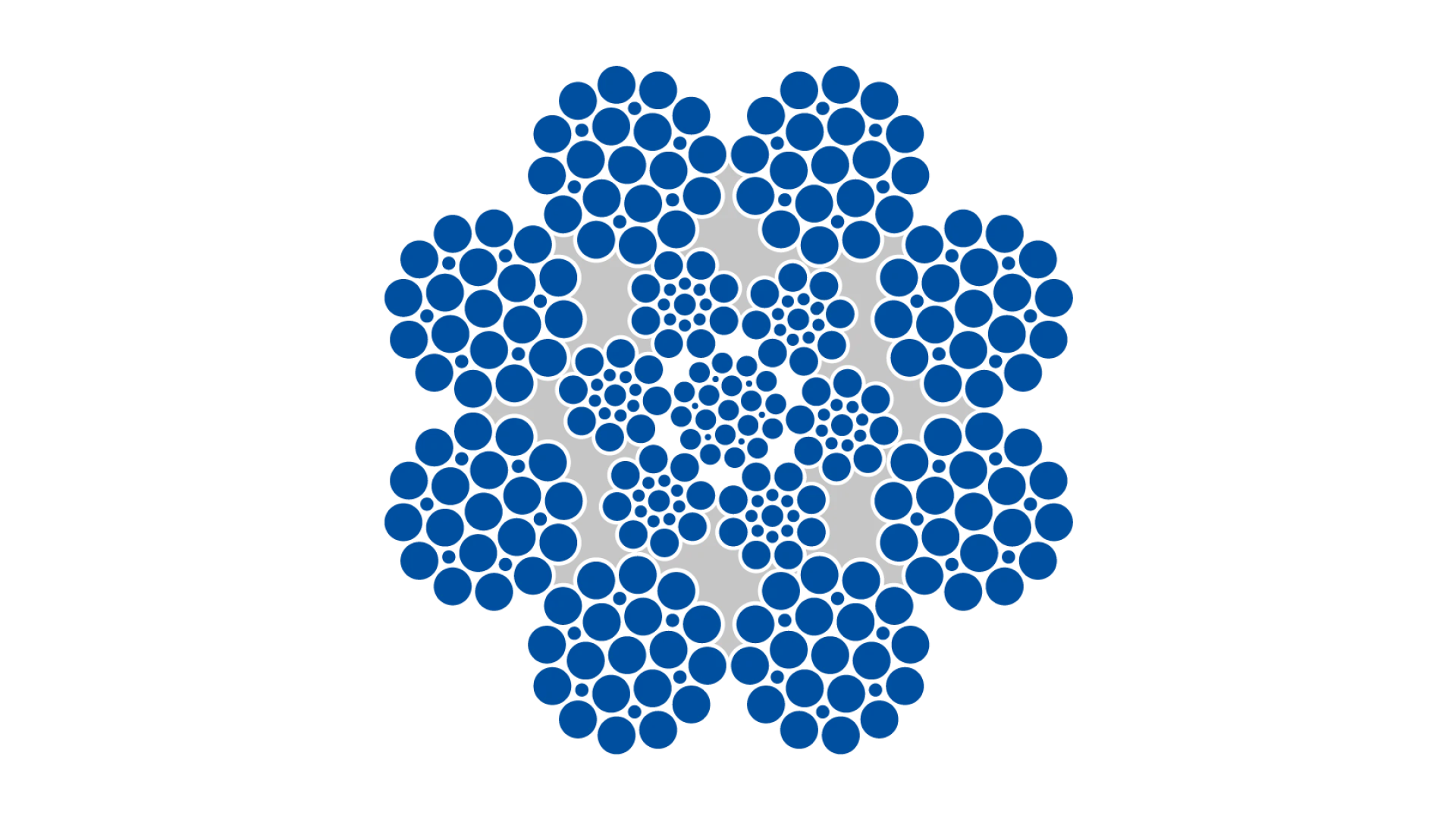

Circular wire strand rope 8S 8 x 25 F + WC

No.	ø	Constr	MBL kN	kg
10503-0600	6	8x25 F+WC	25.1	0.1450
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 8x25 F+WC Diameter: 6 mm Weight: 0.1450 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10503-0800	8	8x25 F+WC	49	0.2700
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 8x25 F+WC Diameter: 8 mm Weight: 0.2700 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10503-0900	9	8x25 F+WC	62	0.3400
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 8x25 F+WC Diameter: 9 mm Weight: 0.3400 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10503-1000	10	8x25 F+WC	76	0.4300
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 8x25 F+WC Diameter: 10 mm Weight: 0.4300 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10503-1100	11	8x25 F+WC	92	0.5200
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 8x25 F+WC Diameter: 11 mm Weight: 0.5200 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10503-1200	12	8x25 F+WC	109	0.6200
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 8x25 F+WC Diameter: 12 mm Weight: 0.6200 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10503-1300	13	8x25 F+WC	128	0.7300
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 8x25 F+WC Diameter: 13 mm Weight: 0.7300 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10503-1400	14	8x25 F+WC	149	0.8500
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 8x25 F+WC Diameter: 14 mm Weight: 0.8500 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10503-1500	15	8x25 F+WC	171	0.9700
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 8x25 F+WC Diameter: 15 mm Weight: 0.9700 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10503-1600	16	8x25 F+WC	195	1.1100
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 8x25 F+WC Diameter: 16 mm Weight: 1.1100 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10503-2200	22	8x25 F+WC	368	2.1000
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 8x25 F+WC Diameter: 22 mm Weight: 2.1000 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
