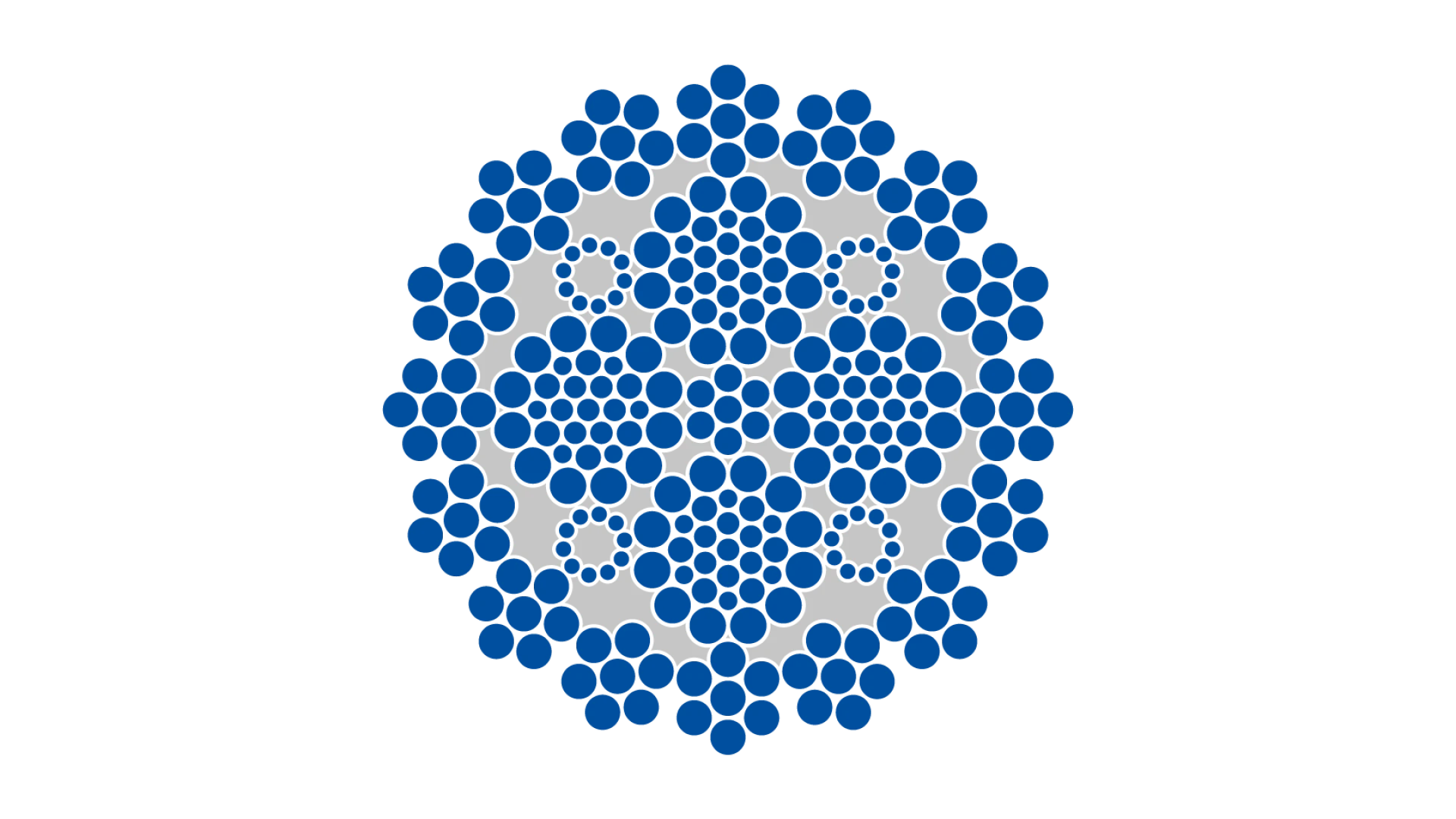

Hoisting rope rotation-resistant cat. 1 / ASTM 16 NR

제품 라인업 — Wire ropes · Hoist ropes / assembly ropes

Hoisting rope rotation-resistant cat. 1 / ASTM 16 NR
No. ø Constr MBL kN kg
10301-0800 8 16 NR 49 0.2500
10301-0900 9 16 NR 62 0.3200
10301-1000 10 16 NR 76 0.4000
10301-1100 11 16 NR 93 0.4700
10301-1300 13 16 NR 130 0.6900
10301-1600 16 16 NR 197 1.0500

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
