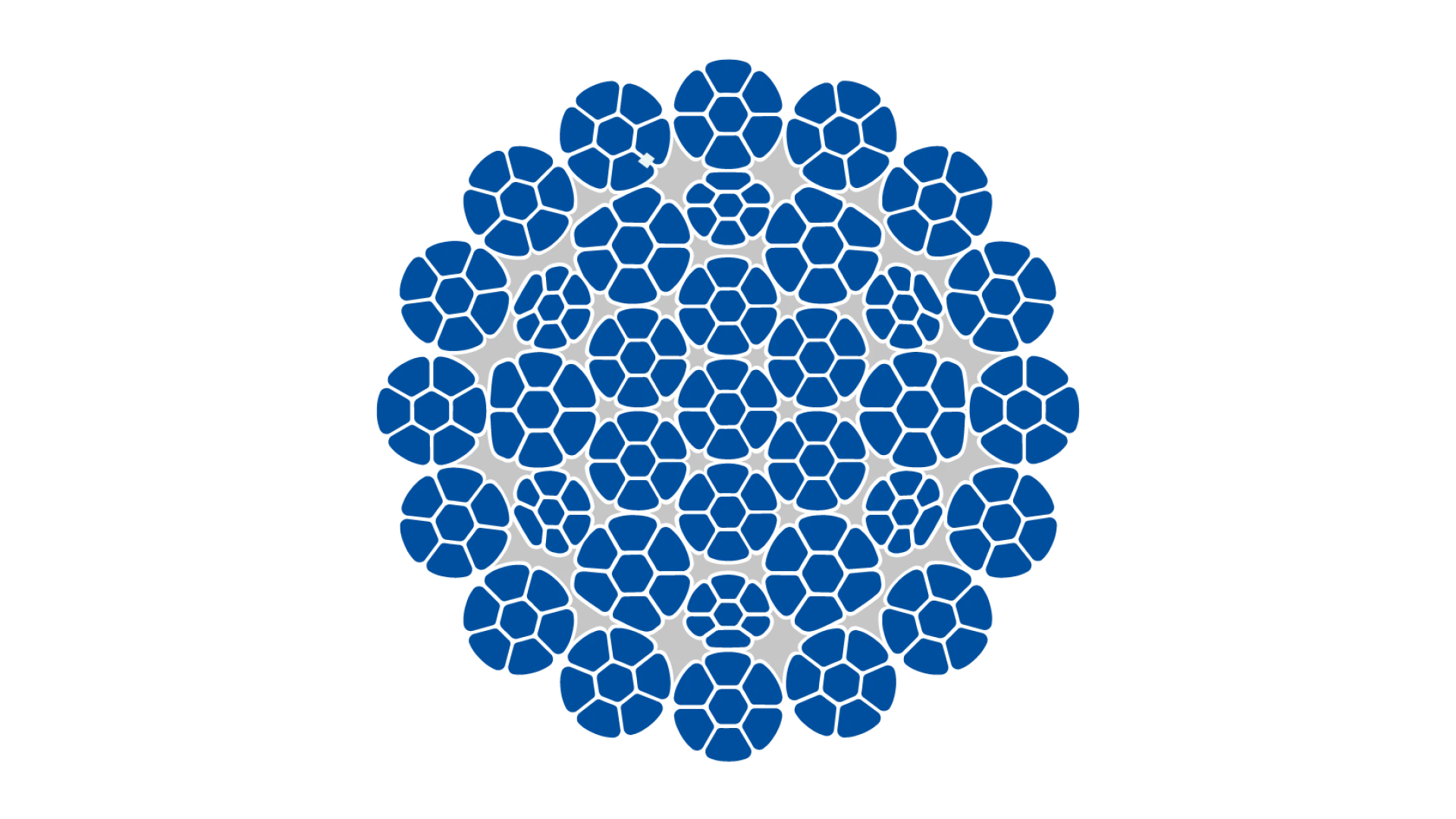

Hoisting rope rotation-resistant cat. 1 / ASTM 35 x 7 + WC strand compactet

제품 라인업 — Wire ropes · Hoist ropes / assembly ropes

Hoisting rope rotation-resistant cat. 1 / ASTM 35 x 7 + WC strand compactet
No. ø Constr MBL kN kg
10501-1000 10 35 x 7 + WC 93,4 0.5100
10501-1100 11 35 x 7 + WC 113 0.6170
10501-1200 12 35 x 7 + WC 135 0.7100
10501-1500 15 35 x 7 + WC 210 1.1000
10501-1600 16 35 x 7 + WC 239 1.2500

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
