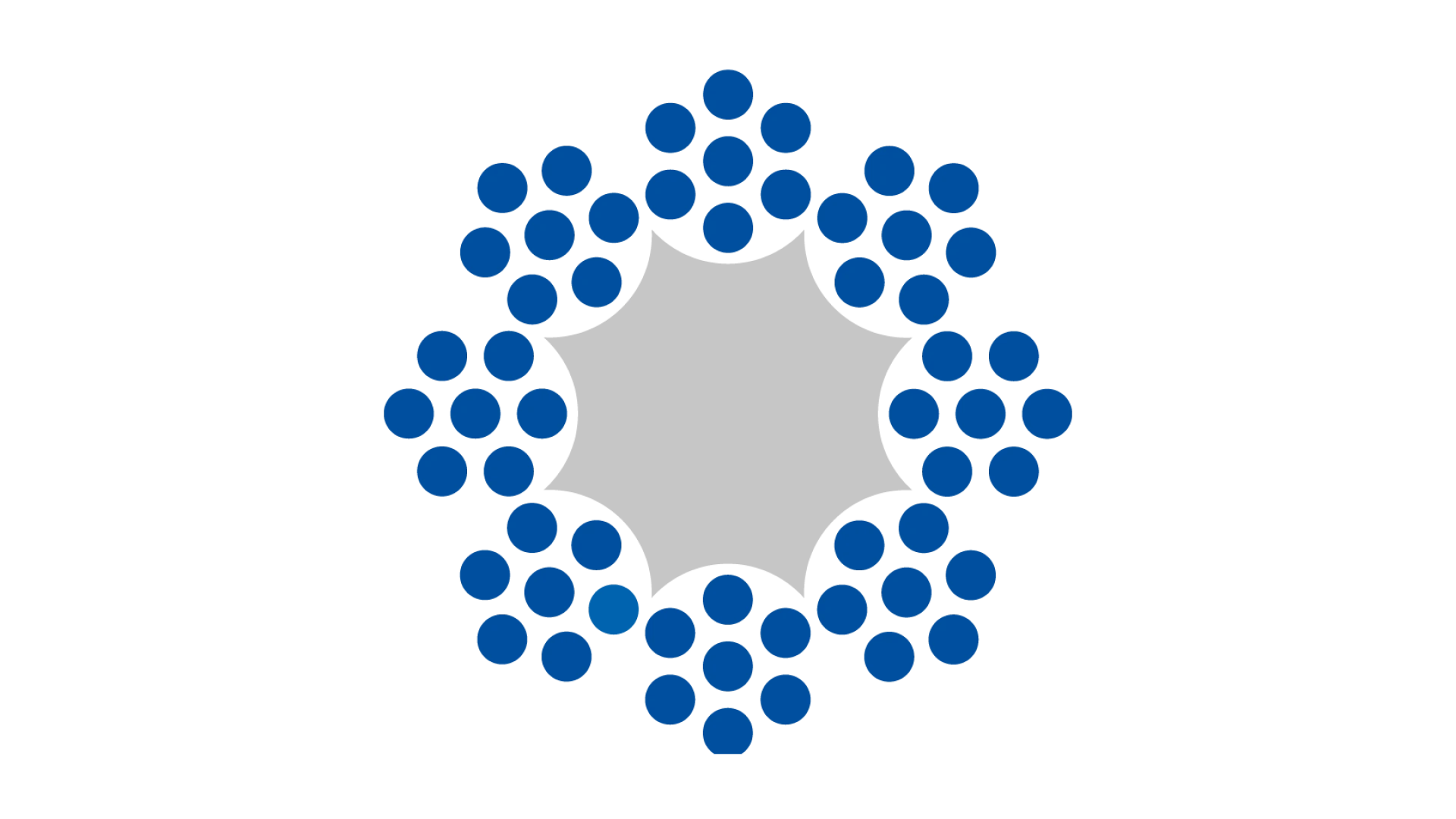

Circular wire strand rope 8 x 7 + FC

제품 라인업 — Wire ropes · Stainless steel ropes

Circular wire strand rope 8 x 7 + FC

No.	ø	Constr	MBL kN	kg
10825-0800	8	8 x 7 + FC	33.5	0.2230
Further informations Standard and Classification: EN 12385 Construction: 8 x 7 + FC Diameter: 8 mm Weight: 0.2230 kg Material group: material group AISI 304/1.4301 Nominal strength (Mat. strength): 1770 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10825-1000	10	8 x 7 + FC	51	0.3000
Further informations Standard and Classification: EN 12385 Construction: 8 x 7 + FC Diameter: 10 mm Weight: 0.3000 kg Material group: material group AISI 304/1.4301 Nominal strength (Mat. strength): 1770 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
