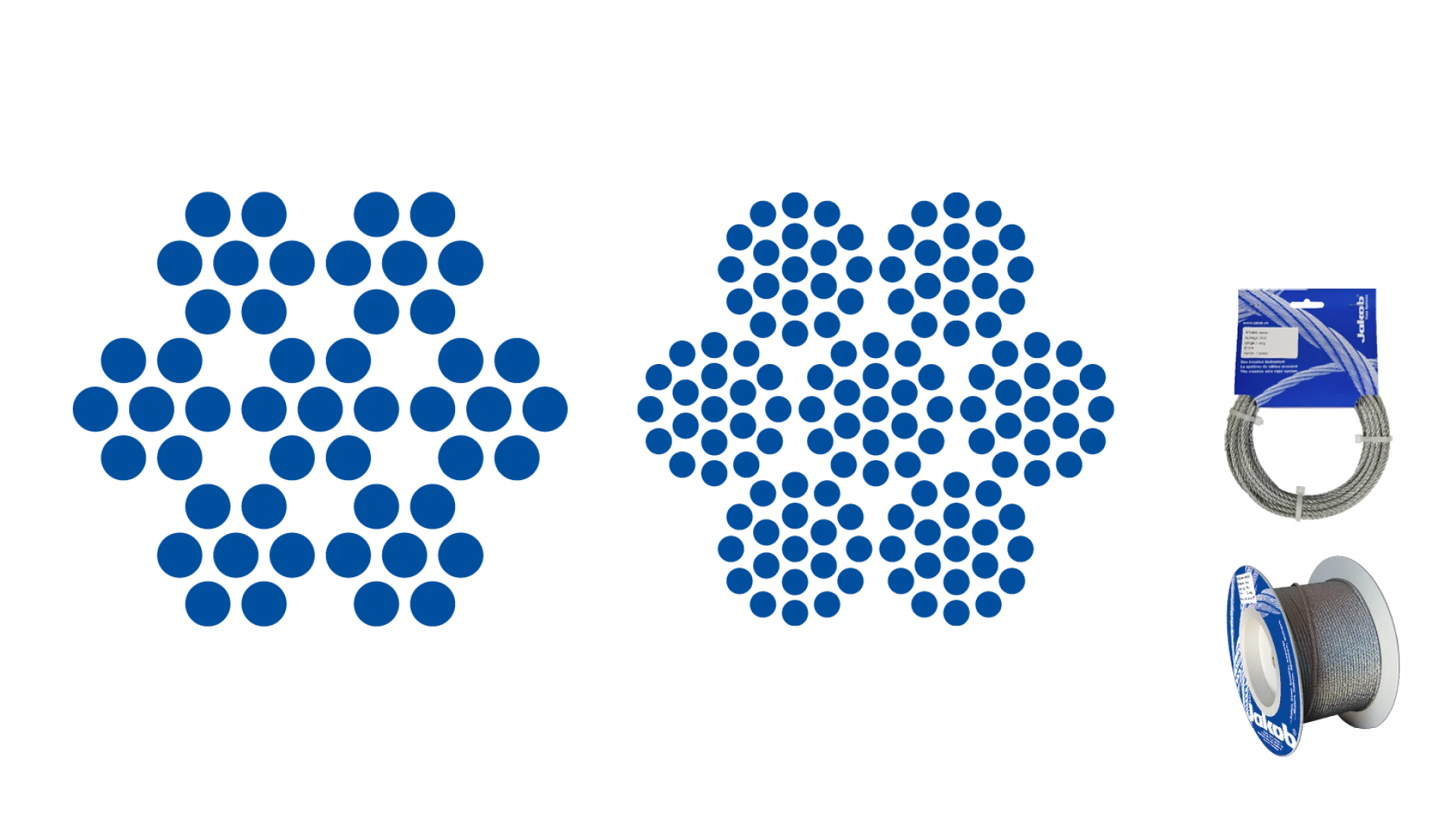

Circular wire strand rope Fixed length

제품 라인업 — Wire ropes · Stainless steel ropes

Circular wire strand rope Fixed length
No. ø Constr L MBL kN F_Rd kN kg
10800-0100-100 1 6 x 7 + WC 100 0.61 0.41 0.4000
10800-0100-20 1 6 x 7 + WC 20 0.61 0.41 0.0860
10800-0150-100 1.5 6 x 7 + WC 100 1.37 0.91 0.8000
10800-0200-10 2 6 x 7 + WC 10 2.40 1.60 0.1200
10800-0200-100 2 6 x 7 + WC 100 2.40 1.60 1.5000
10800-0200-20 2 6 x 7 + WC 20 2.40 1.60 0.2900
10800-0300-10 3 6 x 7 + WC 10 5.2 3.47 0.2300
10800-0300-100 3 6 x 7 + WC 100 5.2 3.47 3.1000
10800-0300-20 3 6 x 7 + WC 20 5.2 3.47 0.4500
10800-0400-05 4 6 x 19 + WC 5 9.09 6.06 0.2000
10800-0400-10 4 6 x 19 + WC 10 9.09 6.06 0.4200
10800-0400-100 4 6 x 7 + WC 100 9.09 6.06 5.5000
10800-0400-20 4 6 x 19 + WC 20 9.09 6.06 0.8500
10800-0500-05 5 6 x 19 + WC 5 12.99 8.66 0.3100
10800-0500-10 5 6 x 19 + WC 10 12.99 8.66 0.6200
10800-0500-100 5 6 x 7 + WC 100 12.99 8.66 8.4000
10800-0600-100 6 6 x 7 + WC 100 18.99 12.66 13.0000
10800-0800-100 8 6 x 7 + WC 100 36.07 24.05 23.0000

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
