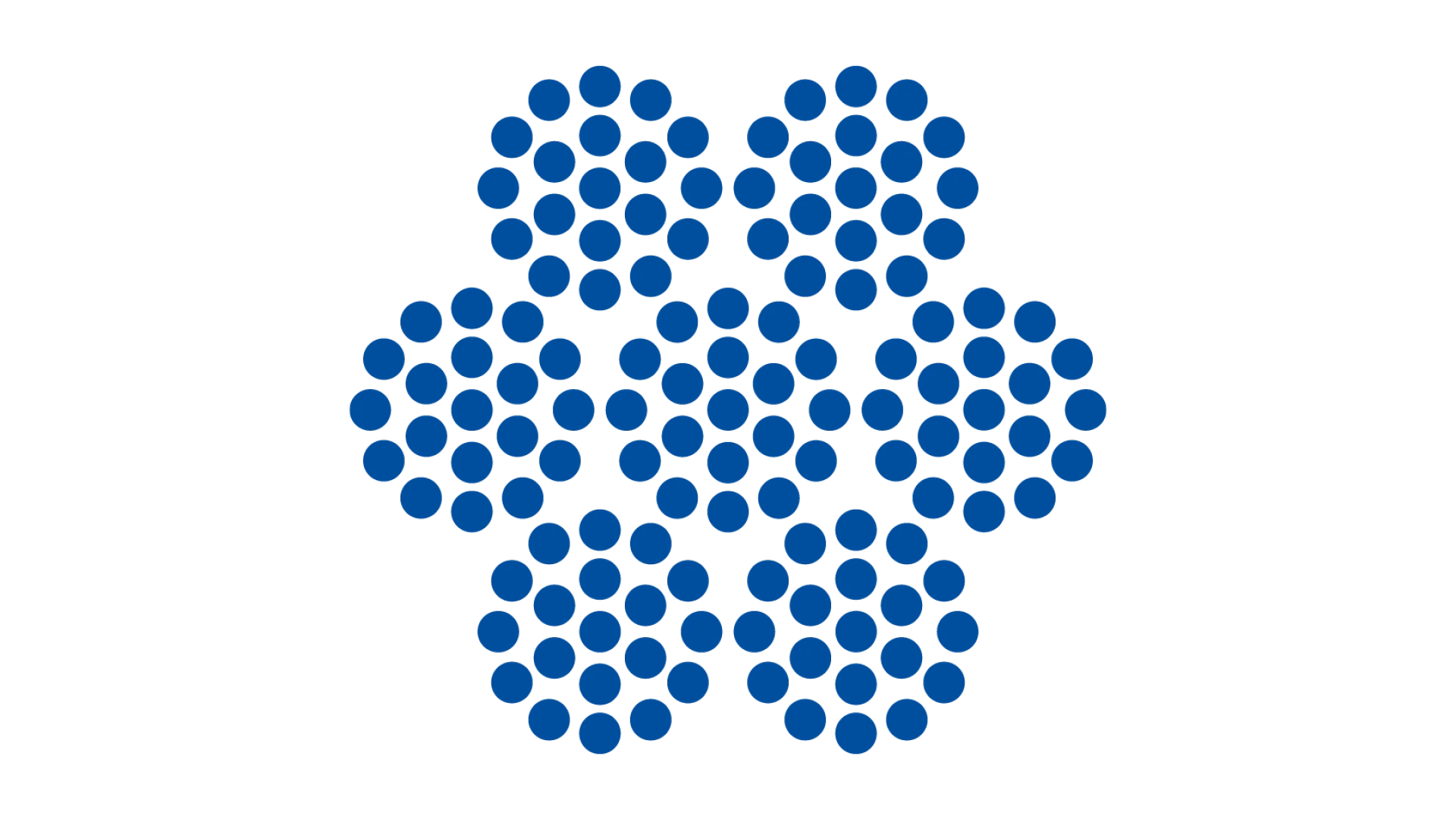

Circular wire strand rope 6 x 19 + WC

제품 라인업 — Wire ropes · Standard wire ropes

Circular wire strand rope 6 x 19 + WC

No.	ø	Constr	MBL kN	kg
10180-0300	3	6 x 19 + WC	5.2	0.0360
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 19 + WC Diameter: 3 mm Weight: 0.0360 kg Material group: steel wire Nominal strength (Mat. strength): 1770 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10180-0400	4	6 x 19 + WC	9.4	0.0600
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 19 + WC Diameter: 4 mm Weight: 0.0600 kg Material group: steel wire Nominal strength (Mat. strength): 1770 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10180-0500	5	6 x 19 + WC	14.7	0.0870
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 19 + WC Diameter: 5 mm Weight: 0.0870 kg Material group: steel wire Nominal strength (Mat. strength): 1770 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10180-0650	6.5	6 x 19 + WC	30	0.1600
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 19 + WC Diameter: 6.5 mm Weight: 0.1600 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10180-1000	10	6 x 19 + WC	71	0.3800
Further informations Standard and Classification: EN 12385-4 Surface: galvanized Construction: 6 x 19 + WC Diameter: 10 mm Weight: 0.3800 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10180-1200	12	6 x 19 + WC	100	0.5500
Further informations Standard and Classification: EN 12385-4 Surface: galvanized Construction: 6 x 19 + WC Diameter: 12 mm Weight: 0.5500 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
