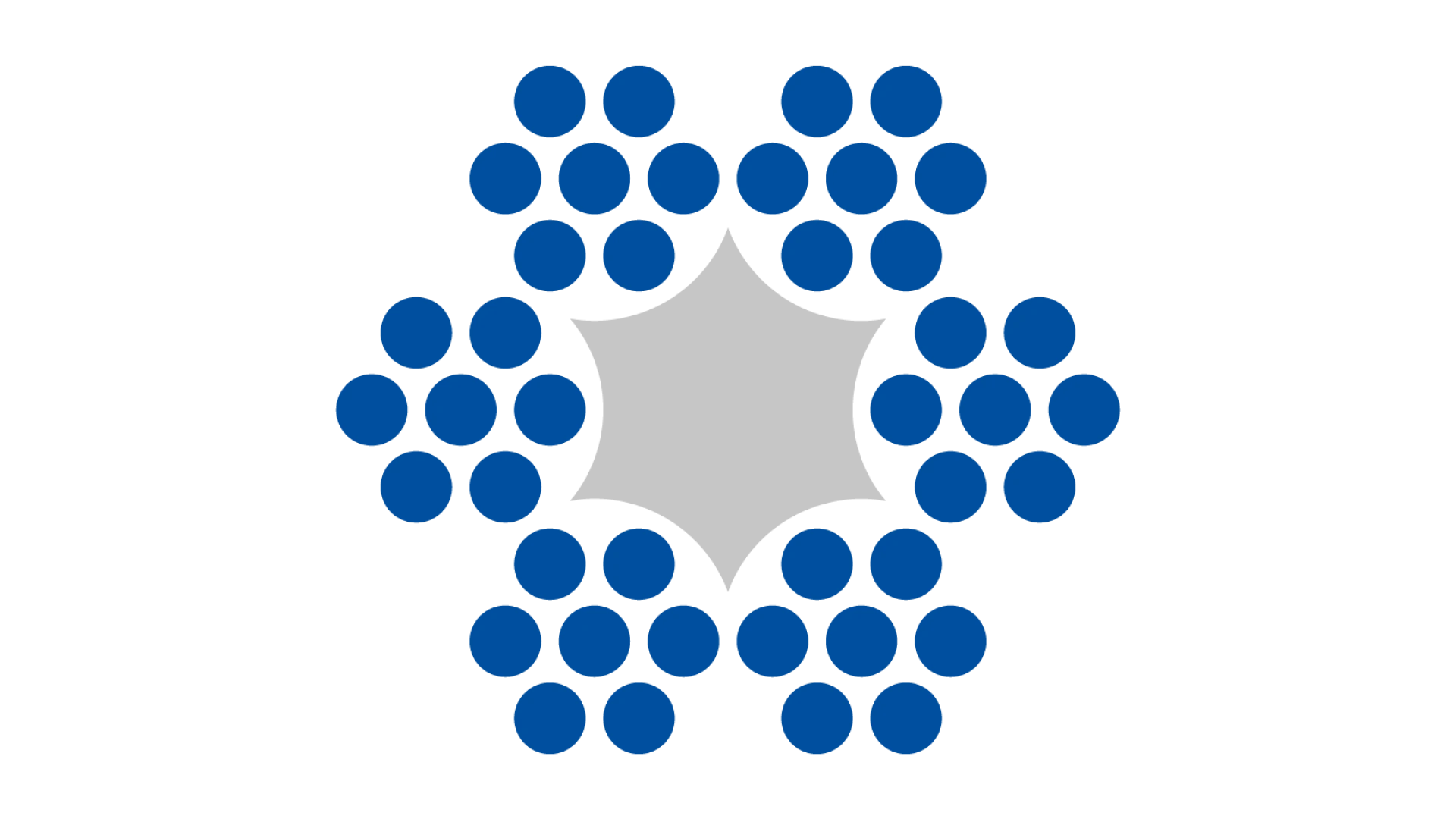

Circular wire strand rope 6 x 7 + FC

제품 라인업 — Wire ropes · Standard wire ropes

Circular wire strand rope 6 x 7 + FC

No.	ø	Constr	MBL kN	kg
10120-0300	3	6 x 7 + FC	5.2	0.0280
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 7 + FC Diameter: 3 mm Weight: 0.0280 kg Material group: steel wire Nominal strength (Mat. strength): 1770 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10120-0400	4	6 x 7 + FC	9.4	0.0520
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 7 + FC Diameter: 4 mm Weight: 0.0520 kg Material group: steel wire Nominal strength (Mat. strength): 1770 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10120-0500	5	6 x 7 + FC	14.7	0.0820
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 7 + FC Diameter: 5 mm Weight: 0.0820 kg Material group: steel wire Nominal strength (Mat. strength): 1770 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10120-0600	6	6 x 7 + FC	21.2	0.1100
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 7 + FC Diameter: 6 mm Weight: 0.1100 kg Material group: steel wire Nominal strength (Mat. strength): 1770 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
