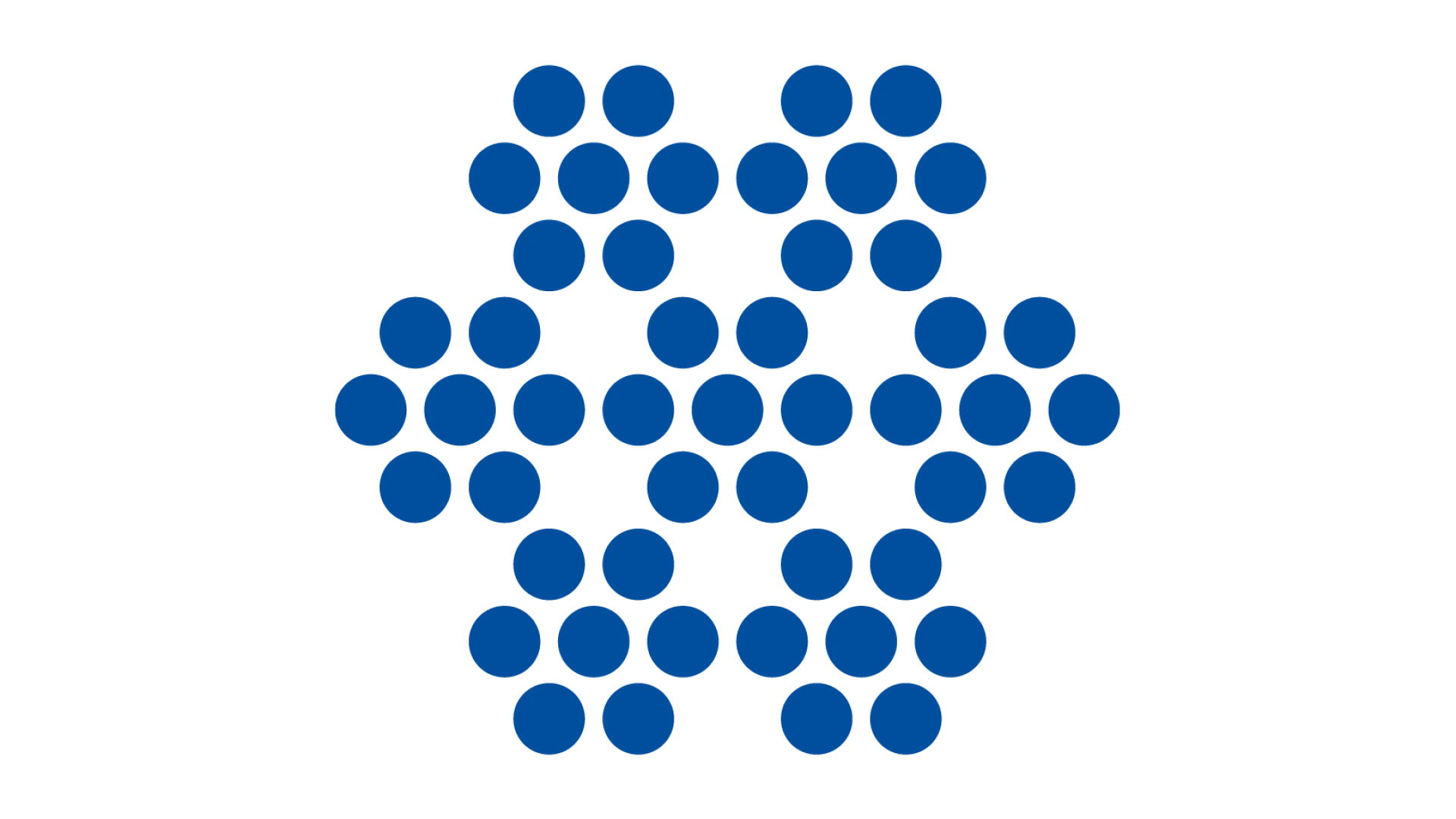

Circular wire strand rope 6 x 7 + WC

제품 라인업 — Wire ropes · Standard wire ropes

Circular wire strand rope 6 x 7 + WC

No.	ø	Constr	MBL kN	kg
10130-0200	2	6 x 7 + WC	2.75	0.0150
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 7 + WC Diameter: 2 mm Weight: 0.0150 kg Material group: steel wire Nominal strength (Mat. strength): 1770 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10130-0250	2.5	6 x 7 + WC	4.29	0.0270
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 7 + WC Diameter: 2.5 mm Weight: 0.0270 kg Material group: steel wire Nominal strength (Mat. strength): 1770 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10130-0300	3	6 x 7 + WC	6.18	0.0330
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 7 + WC Diameter: 3 mm Weight: 0.0330 kg Material group: steel wire Nominal strength (Mat. strength): 1770 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10130-0400	4	6 x 7 + WC	10.9	0.0580
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 7 + WC Diameter: 4 mm Weight: 0.0580 kg Material group: steel wire Nominal strength (Mat. strength): 1770 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10130-0500	5	6 x 7 + WC	17.2	0.0905
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 7 + WC Diameter: 5 mm Weight: 0.0905 kg Material group: steel wire Lay direction: sZ Price basis / tiered prices Price on request
10130-0600	6	6 x 7 + WC	24.7	0.1310
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 7 + WC Diameter: 6 mm Weight: 0.1310 kg Material group: steel wire Nominal strength (Mat. strength): 1770 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10130-0800	8	6 x 7 + WC	45	0.2210
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 7 + WC Diameter: 8 mm Weight: 0.2210 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
