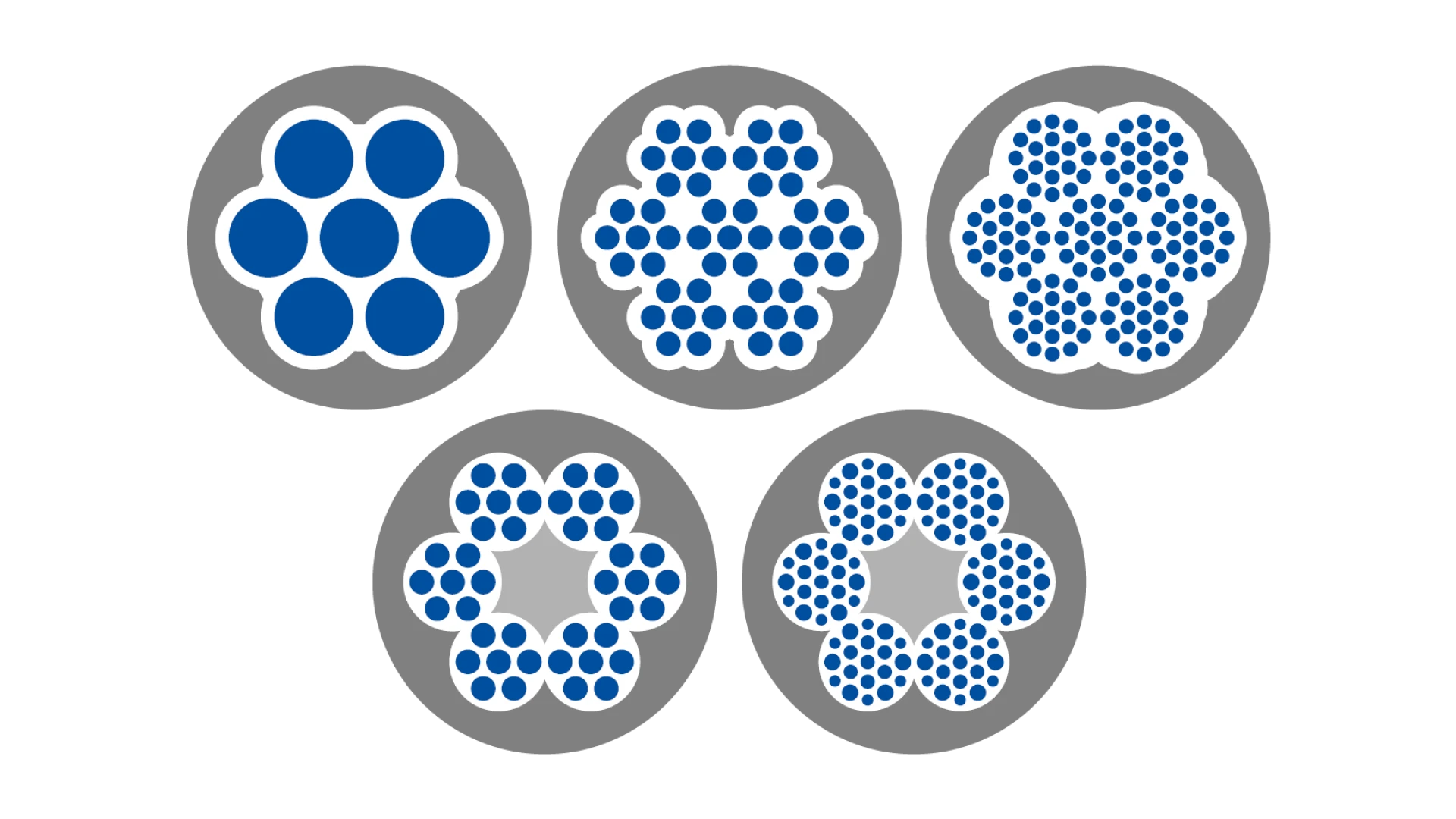

Circular wire strand rope plastic-coated
No. Color ø Constr MBL kN kg
10140-0810-2 #000000 8 / 10 6 x 19 + WC 37.6 0.2540
10140-1012 transparent 10 / 12 6 x 19 + FC 54.4 0.4000
10140-1012-2 #000000 10 / 12 6 x 19 + WC 58.8 0.4300
10140-2030 transparent 2 / 3 6 x 7 + WC 2.5 0.0220
10140-2030-1 #e60000 2 / 3 6 x 7 + FC 2.5 -
10140-2035 transparent 2 / 3.5 6 x 7 + FC 2.3 0.0230
10140-2035-1 #e60000 2 / 3.5 6 x 7 + FC 2.3 0.0230
10140-3045 transparent 3 / 4.5 6 x 7 + WC 5.7 0.0460
10140-3050-1 #e60000 3 / 5 6 x 7 + FC 5.2 0.0480
10140-3050-42 transparent 3 / 5 6 x 7 + FC 5.2 0.0460
10140-4050 transparent 4 / 5 6 x 19 + WC 9.4 0.0700
10140-4056-2 #000000 4 / 5.6 VS 6-10 VOPROX 0.0590
10140-4060 transparent 4 / 6 6 x 7 + FC 8.7 0.0700
10140-4060-2 #000000 4 / 6 6 x 19 + FC 8.7 0.0700
10140-5070 transparent 5 / 7 6 x 19 + FC 14.7 0.1100
10140-6080 transparent 6 / 8 6 x 19 + FC 19.6 0.1500
10160-0035-3 #fdfdfe 1.65 / 3.5 1 x 7 2.5 0.0250

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
