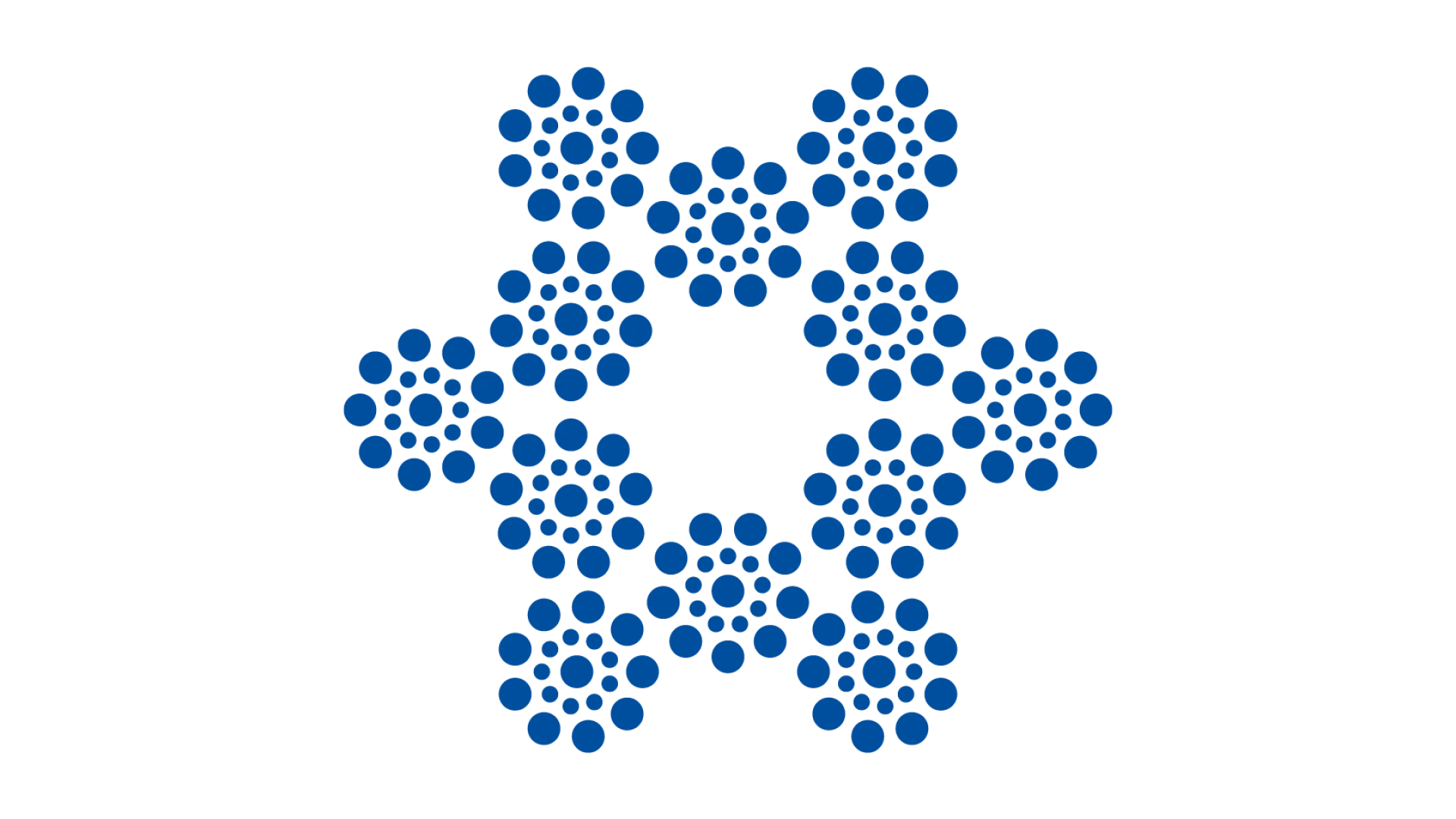

Braided rope nonrotating 12 x 19

제품 라인업 — Wire ropes · Winch ropes

Braided rope nonrotating 12 x 19

No.	ø	Constr	MBL kN	kg
10345-0600	6	12 x 19	21	0.1050
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 12 x 19 Diameter: 6 mm Weight: 0.1050 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Price basis / tiered prices Price on request
10345-0800	8	12 x 19	44	0.2400
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 12 x 19 Diameter: 8 mm Weight: 0.2400 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Price basis / tiered prices Price on request
10345-1000	10	12 x 19	72	0.3500
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 12 x 19 Diameter: 10 mm Weight: 0.3500 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Price basis / tiered prices Price on request
10345-1200	12	12 x 19	96	0.4900
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 12 x 19 Diameter: 12 mm Weight: 0.4900 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Price basis / tiered prices Price on request
10345-1300	13	12 x 19	105	0.5500
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 12 x 19 Diameter: 13 mm Weight: 0.5500 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
