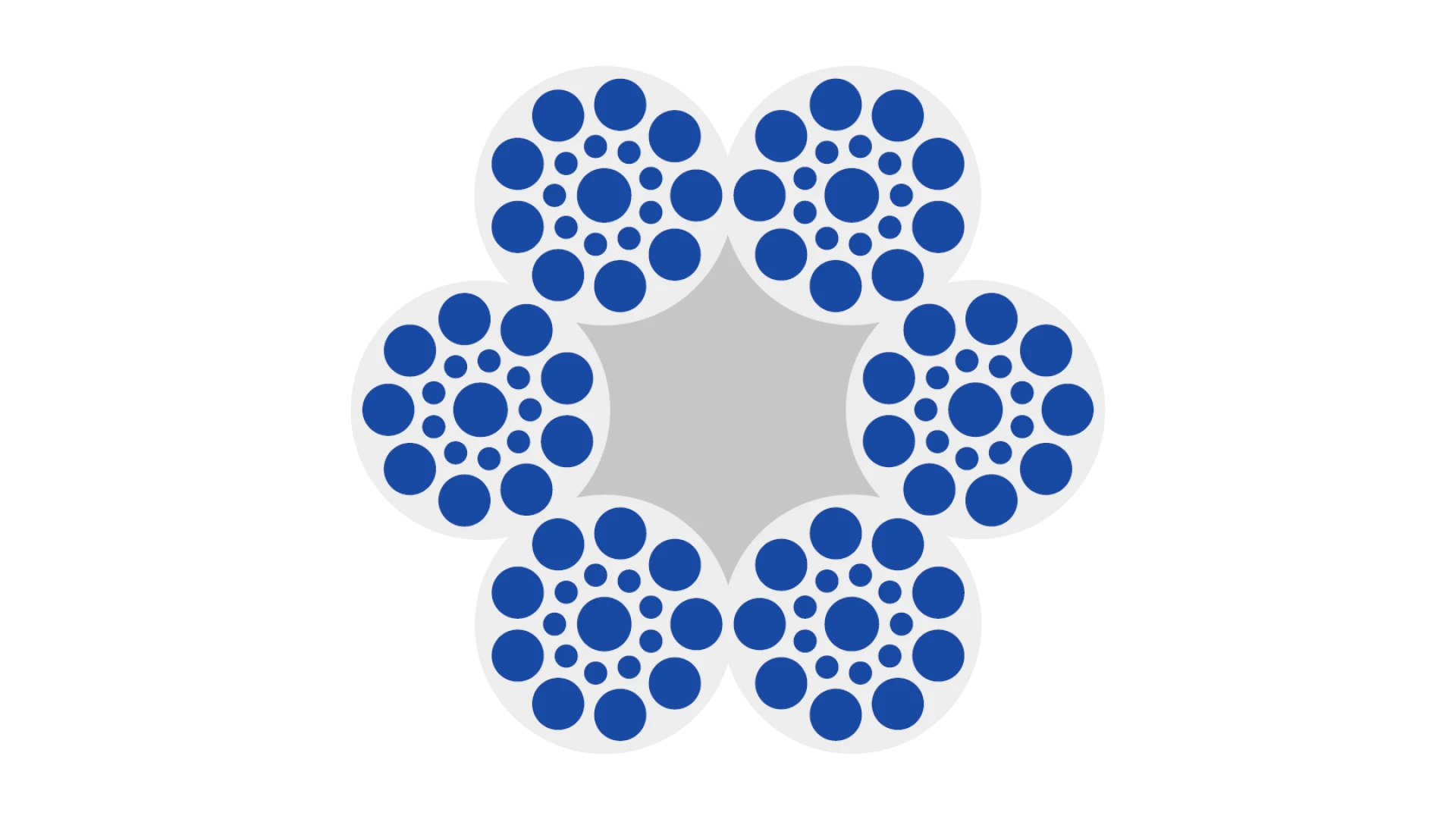

Circular wire strand rope 6 x 19 Seale + FC

제품 라인업 — Wire ropes · Winch ropes

Circular wire strand rope 6 x 19 Seale + FC

No.	ø	Constr	MBL kN	kg
10205-0600	6	6 x 19 Seale + FC	23	0.1300
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 19 Seale + FC Diameter: 6 mm Weight: 0.1300 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10205-0700	7	6 x 19 Seale + FC	31	0.1700
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 19 Seale + FC Diameter: 7 mm Weight: 0.1700 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10205-0750	7.5	6 x 19 Seale + FC	39	0.2000
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 19 Seale + FC Diameter: 7.5 mm Weight: 0.2000 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10205-0800	8	6 x 19 Seale + FC	42	0.2200
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 19 Seale + FC Diameter: 8 mm Weight: 0.2200 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10205-0900	9	6 x 19 Seale + FC	52	0.2700
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 19 Seale + FC Diameter: 9 mm Weight: 0.2700 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10205-1000	10	6 x 19 Seale + FC	64	0.3300
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 19 Seale + FC Diameter: 10 mm Weight: 0.3300 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10205-1100	11	6 x 19 Seale + FC	78	0.4000
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 19 Seale + FC Diameter: 11 mm Weight: 0.4000 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10205-1200	12	6 x 19 Seale + FC	93	0.5100
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 19 Seale + FC Diameter: 12 mm Weight: 0.5100 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
