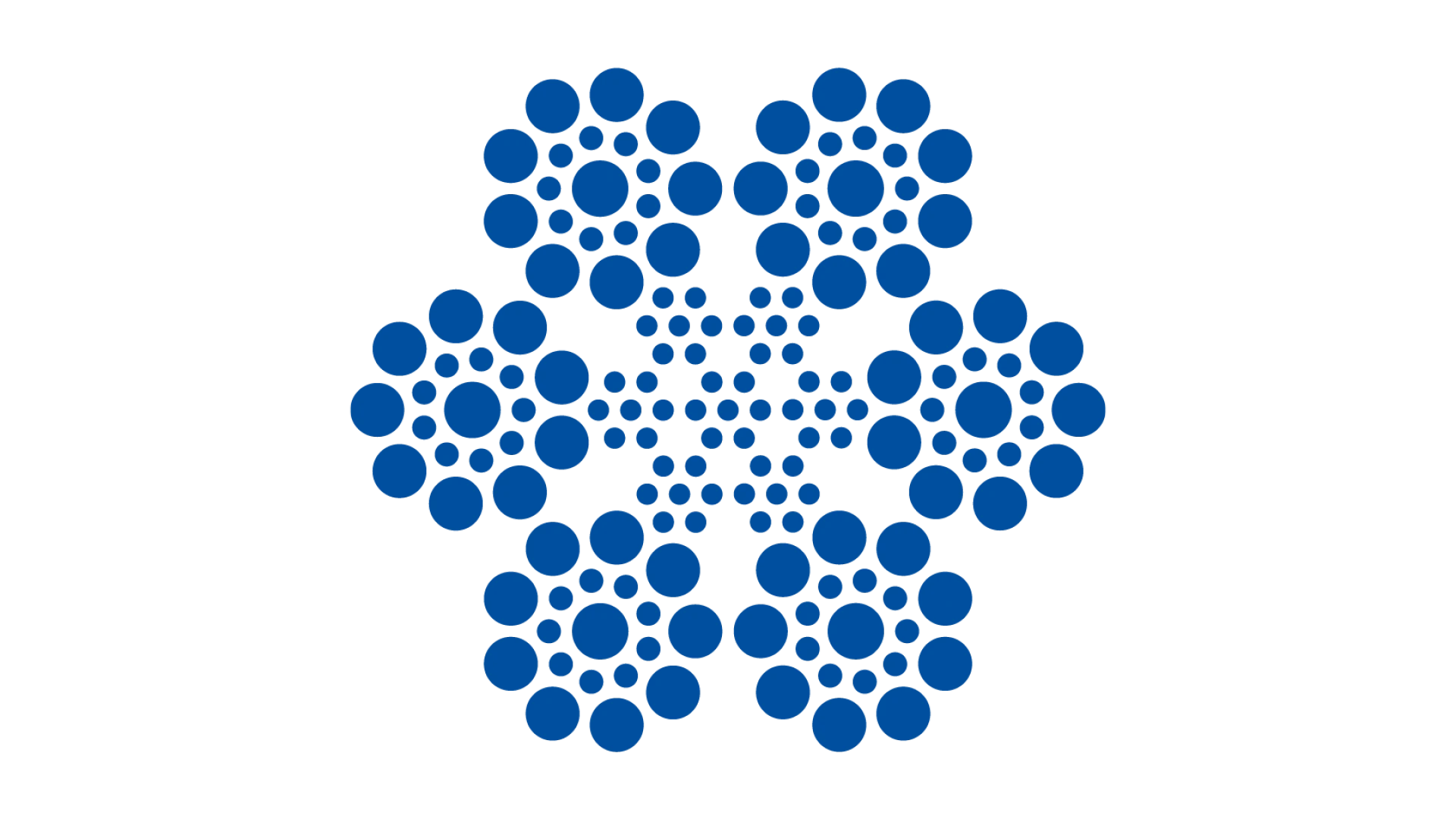

Circular wire strand rope 6 x 19 Seale + WC

제품 라인업 — Wire ropes · Winch ropes

Circular wire strand rope 6 x 19 Seale + WC

No.	ø	Constr	MBL kN	kg
10230-0600	6	6 x 19 Seale + WC	25	0.1400
Further informations Standard and Classification: EN 12385-4 Surface: galvanized Construction: 6 x 19 Seale + WC Diameter: 6 mm Weight: 0.1400 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10230-0700	7	6 x 19 Seale + WC	34	0.1900
Further informations Standard and Classification: EN 12385-4 Surface: galvanized Construction: 6 x 19 Seale + WC Diameter: 7 mm Weight: 0.1900 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10230-0800	8	6 x 19 Seale + WC	45	0.2500
Further informations Standard and Classification: EN 12385-4 Surface: galvanized Construction: 6 x 19 Seale + WC Diameter: 8 mm Weight: 0.2500 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10230-0900	9	6 x 19 Seale + WC	56	0.3000
Further informations Standard and Classification: EN 12385-4 Surface: galvanized Construction: 6 x 19 Seale + WC Diameter: 9 mm Weight: 0.3000 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10230-1000	10	6 x 19 Seale + WC	70	0.3600
Further informations Standard and Classification: EN 12385-4 Surface: galvanized Construction: 6 x 19 Seale + WC Diameter: 10 mm Weight: 0.3600 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10230-1100	11	6 x 19 Seale + WC	84	0.4300
Further informations Standard and Classification: EN 12385-4 Surface: galvanized Construction: 6 x 19 Seale + WC Diameter: 11 mm Weight: 0.4300 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10230-1200	12	6 x 19 Seale + WC	100	0.5600
Further informations Standard and Classification: EN 12385-4 Surface: galvanized Construction: 6 x 19 Seale + WC Diameter: 12 mm Weight: 0.5600 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
