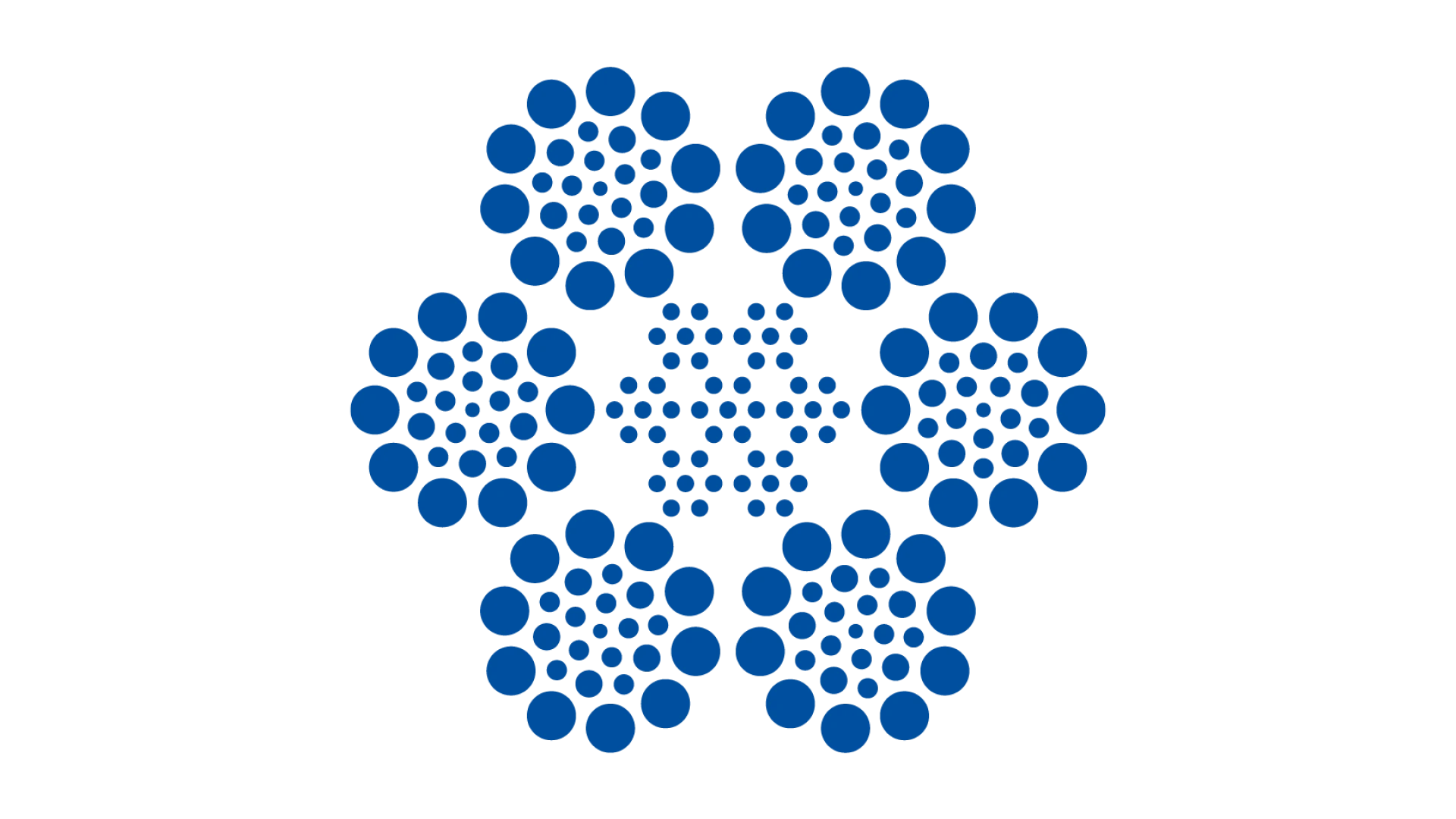

Circular wire strand rope 6 x 26 WS + WC

제품 라인업 — Wire ropes · Winch ropes

Circular wire strand rope 6 x 26 WS + WC

No.	ø	Constr	MBL kN	kg
10220-0900	9	6 x 26 FSW + WC	56	0.3100
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 26 FSW + WC Diameter: 9 mm Weight: 0.3100 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10220-1000	10	6 x 26 FSW + WC	74	0.4100
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 6 x 26 FSW + WC Diameter: 10 mm Weight: 0.4100 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
