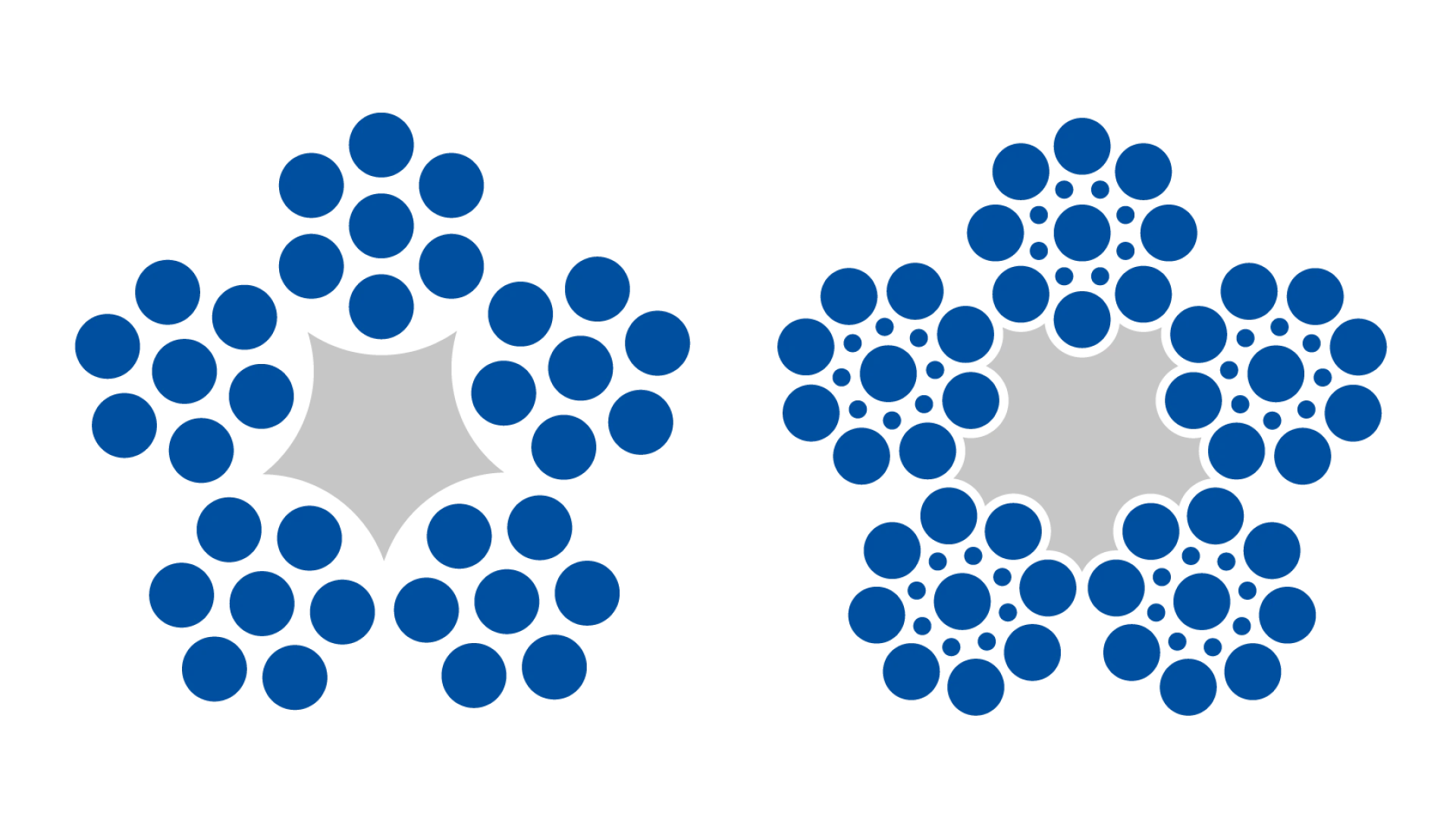

Circular wire strand rope Norot

제품 라인업 — Wire ropes · Winch ropes

Circular wire strand rope Norot

No.	ø	Constr	MBL kN	kg
10340-0420	4.2	5 x 7 + FC	12	0.0630
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 5 x 7 + FC Diameter: 4.2 mm Weight: 0.0630 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10340-0600	6	5 x 17 + Seale + FC	23	0.1200
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 5 x 17 + Seale + FC Diameter: 6 mm Weight: 0.1200 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10340-0800	8	5 x 17 + Seale + FC	45	0.2300
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 5 x 17 + Seale + FC Diameter: 8 mm Weight: 0.2300 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10340-0900	9	5 x 17 + Seale + FC	60	0.3040
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 5 x 17 + Seale + FC Diameter: 9 mm Weight: 0.3040 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10340-1000	10	5 x 17 + Seale + FC	71	0.3700
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 5 x 17 + Seale + FC Diameter: 10 mm Weight: 0.3700 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10340-1100	11	5 x 17 + Seale + FC	84	0.4300
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 5 x 17 + Seale + FC Diameter: 11 mm Weight: 0.4300 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10340-1300	13	5 x 17 + Seale + FC	123	0.6400
Further informations Standard and Classification: EN 12385 Surface: galvanized Construction: 5 x 17 + Seale + FC Diameter: 13 mm Weight: 0.6400 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
